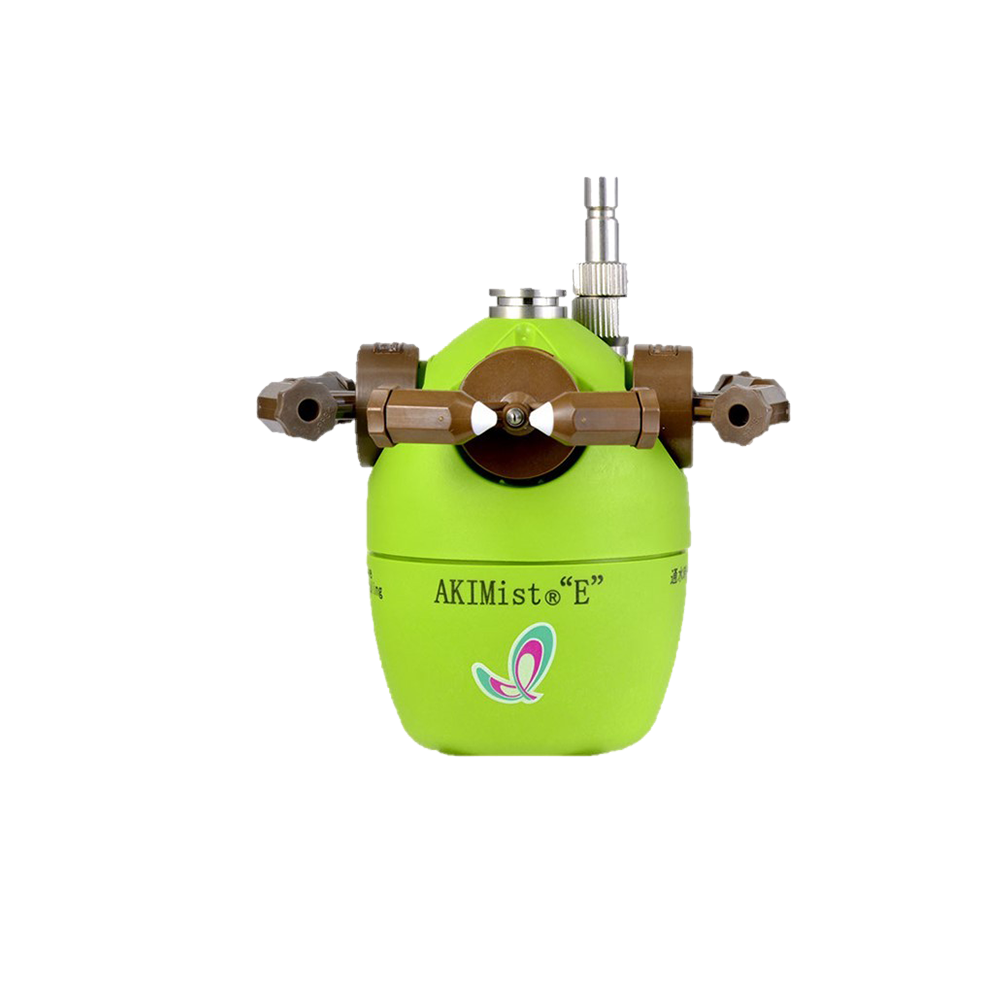

AKIMist®
Non-wetting Dry Fog humidification system
Capable of producing non-wetting dry fog with a mean droplet diameter of 10μm or less.
Fog stream, sprayed out from the two orifices apart, collides with each other and are further atomized by ultrasonic waves, resulting in creation of a uniform distribution of fine droplet sizes.
It prevents dryness and static electricity, enabling higher manufactured product quality and lower defect rates.
Its running cost is 1/5 of a comparable steam humidification system.
This method integrates an exterior mixing type of air-liquid system, as the compressed air and the liquid mix outside the nozzle. Thus, this impinging type of nozzle clogs the least in the range of pneumatic nozzles.
Specifications
Pipe connection size
Rc1/4, Rc1/8
Spray angle
60 ° -
60 °
Droplet size
Dry fog (Below 10µm)
Air pressure
-
Standard pressure
3 bar -
3 bar
Spray capacity
0.13 L/min -
8.33 L/min
Free passage diameter
0.6 - 1.1 mm
Air consumption
138 L/min -
3000 L/min
Applications
Spraying
Disinfection and virus prevention
Humidification
Humidification: ESD reduction
Dust suppression
The tiny droplets can capture and suppress dust
Video
Case studies
Energy saving dual spray nozzles in Continuous Casting Machine
A large European steelmaker was looking for ways to reduce its energy use on the production site. The...
Disinfection of containers for coffee creamer
A Japanese producer of coffee creamers had issues with their pneumatic spray nozzle used for disinfecting the containers....
Spray disinfection in bread cooling rooms
A Japanese bread bakery was concerned about hygiene measures in their bread cooling room. The cooling room is...
Reduction of paint defects at a plastic bumper manufacturer
In order to be productive and cost efficient, first-tier suppliers need to increase their production without delays and...

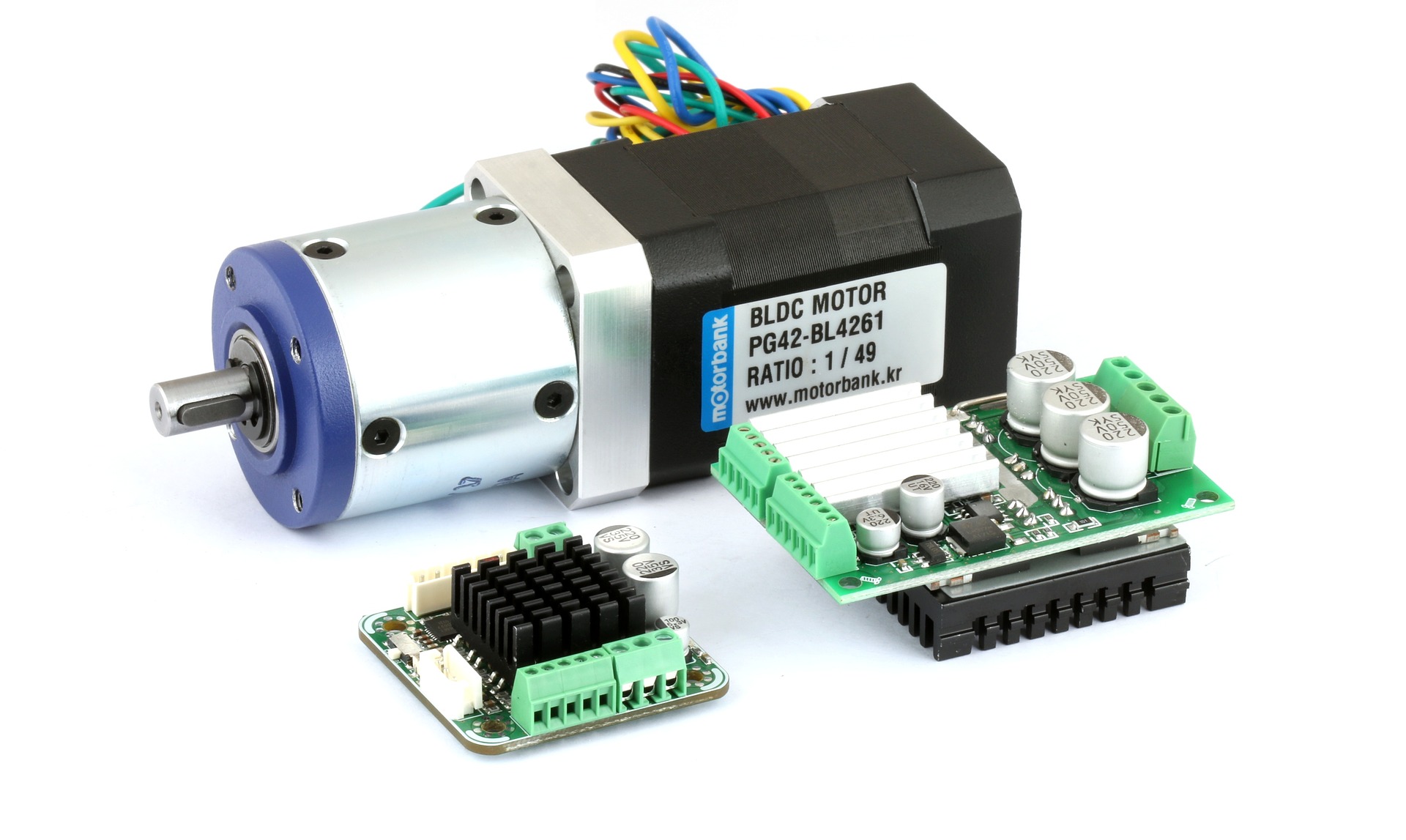

Dry Fog humidification for BLDC motors’ production for industrial and commercial use
Part of the group MinebeaMitsumi, Inc., Japanese multinational corporation and major producer of machinery component and electronic devices,...

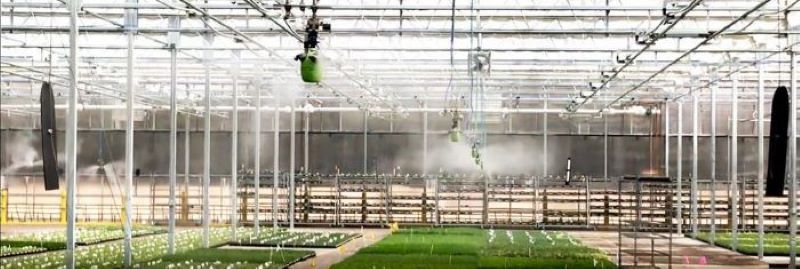

Humidity control in greenhouse with Dry Fog
Thanks to the uniformed fog sprayed from the AKIMist®, it helped Walters Gardens to provide the best plants...

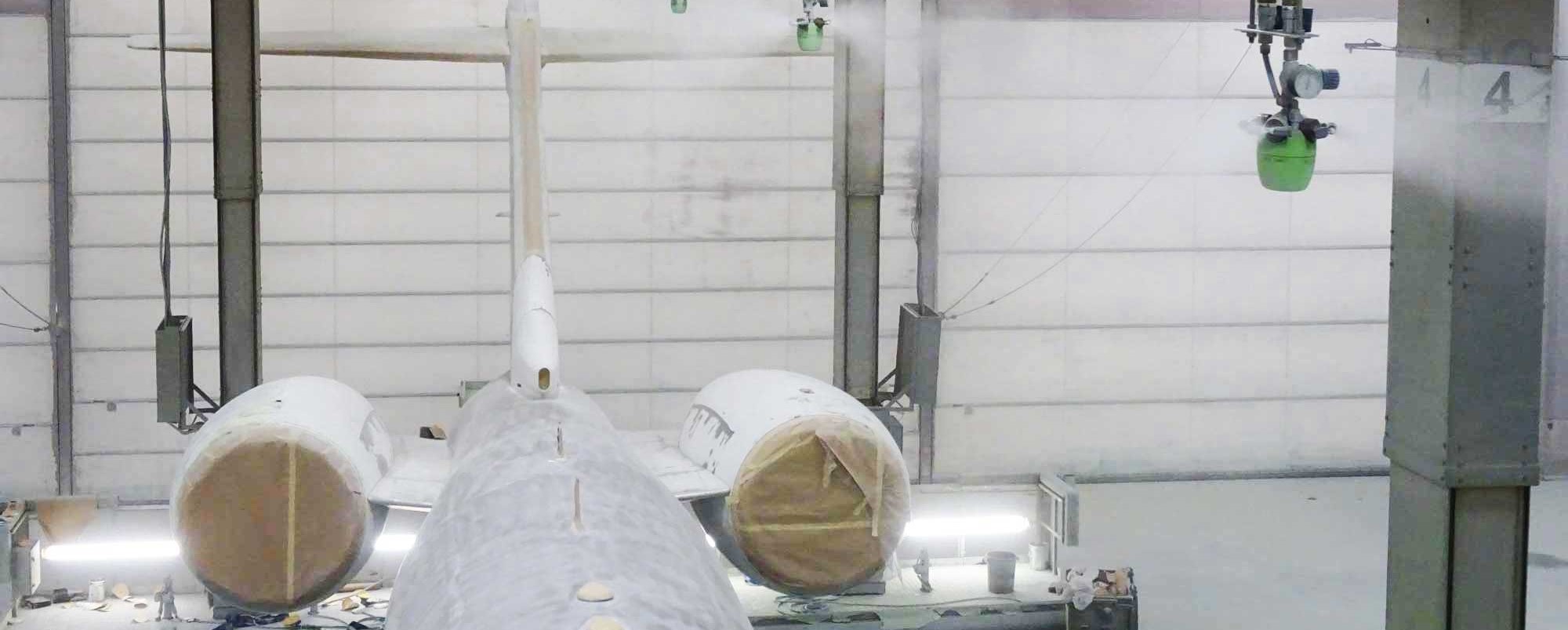

Dust particles suppression in MRO hangar
An MRO customer was experiencing problems with dust during the sanding, painting and repair processes of their airplanes....

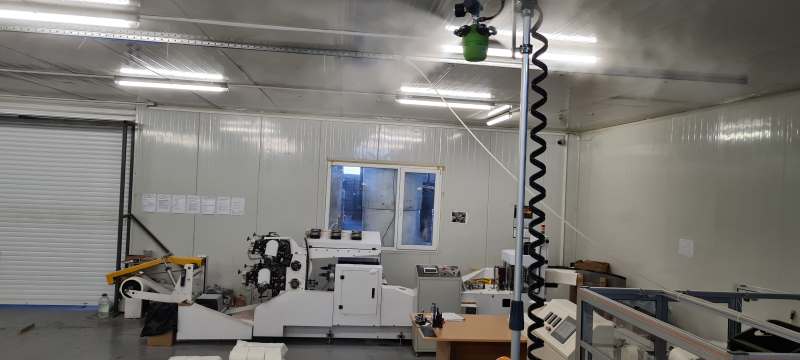

Customer Testimonial in the packaging and paper industry: EMA LTD
Since EMA LTD started converting tissue products in their warehouse in Sofia, they found that the amount of...
Kings cross granary square fountain
The Granary Square Fountain at King's Cross in London consists of 1080 spray nozzles which light up in...
