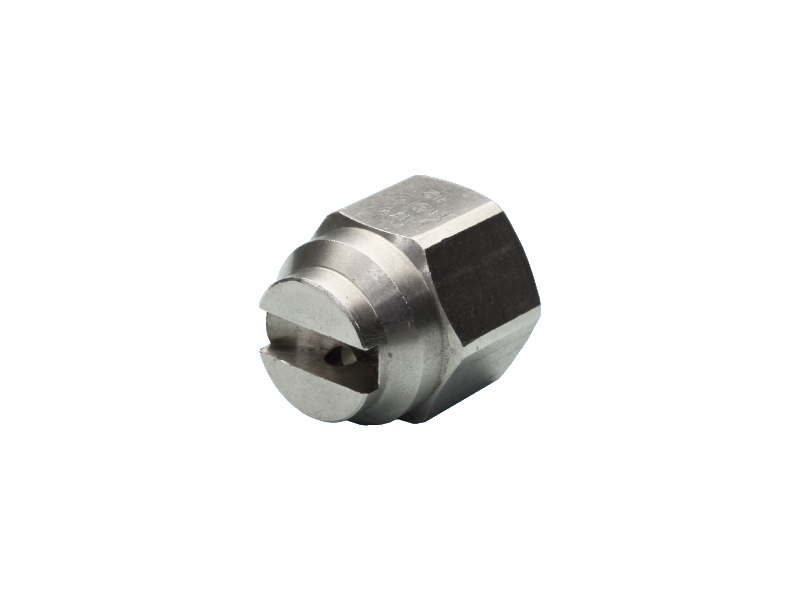

DDRP (made to order)
Thick flat spray with uniform distribution
Thick flat spray pattern with uniform distribution.
Covers wide spray area with high spray impact.
Minimal variation in spray angle, even in 1:3 turndown ratio.
Minimal clogging due to large free passage diameter.
Specifications
Pipe connection size
Rc1/4
Spray angle
45 ° -
115 °
Droplet size
Light rain (0.3 - 1.0 mm)
Air pressure
-
Standard pressure
0,5 bar -
20 bar
Spray capacity
2,15 L/min -
253 L/min
Free passage diameter
-
Air consumption
2 L/min -
38 L/min
Applications
Cleaning
Steel plates after acid picking, filters
Cooling
Rolls, Cast plates, hot rolled sheets
