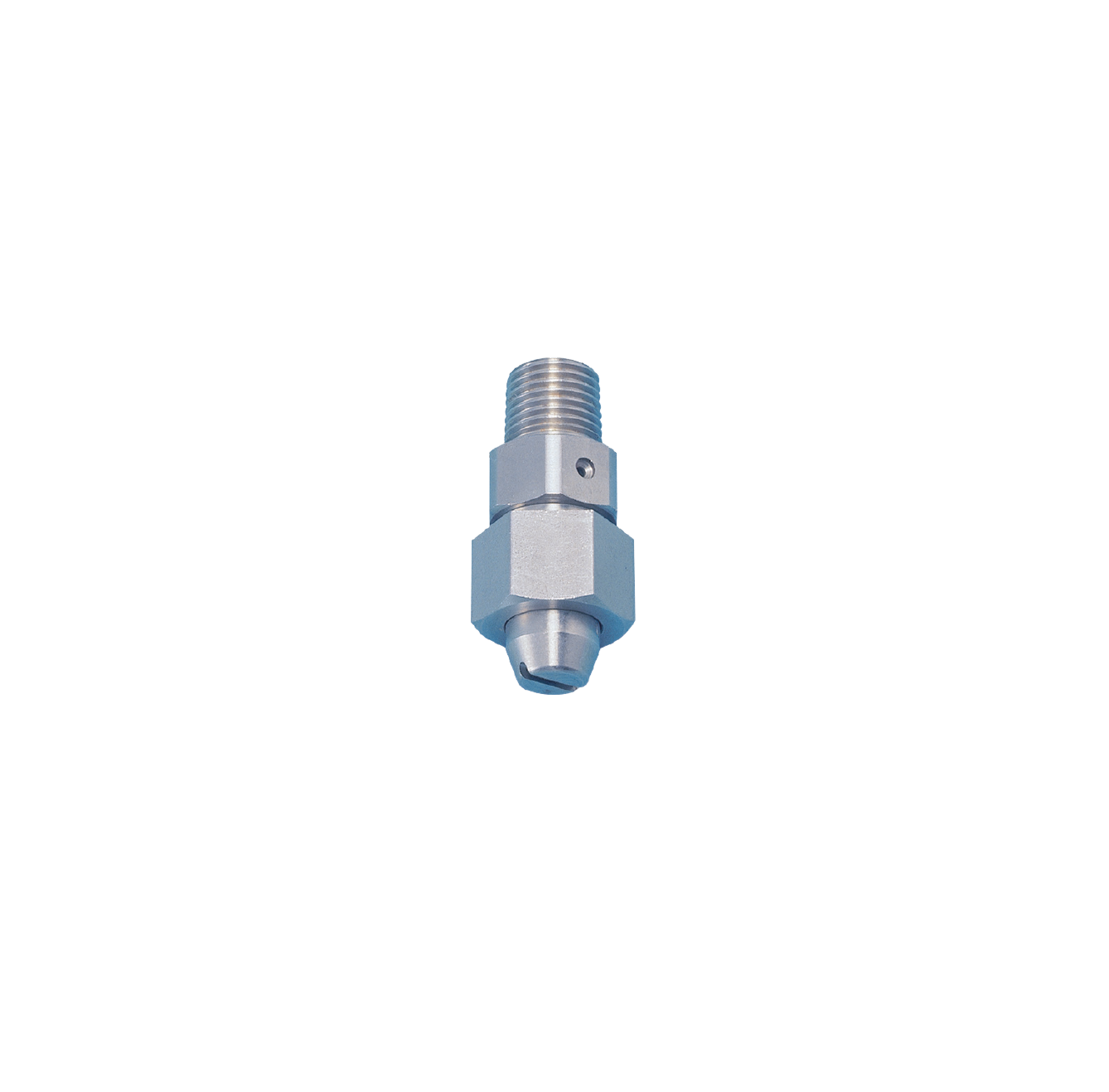

EJVV
Air mixing type large thick flat spray
It has wider depth in spray pattern compared with standard flat spray nozzles, and the ratio of width and depth is (3-4):1.
The free passage diameter and mean droplet diameter are slightly larger than those of a standard flat spray nozzle. T
apered edges overlap to provide uniformity of spray distribution in multiple-nozzle arrangements.
Specifications
Pipe connection size
Rc1/4
Spray angle
80 ° -
90 °
Droplet size
Light rain (0.3 - 1.0 mm)
Air pressure
-
Standard pressure
3 bar -
20 bar
Spray capacity
1,83 L/min -
31 L/min
Free passage diameter
-
Air consumption
-
Applications
Cleaning
Water rinsing after acid cleaning of metal sheets, water rinsing before or after painting
Cooling
Steel plates
