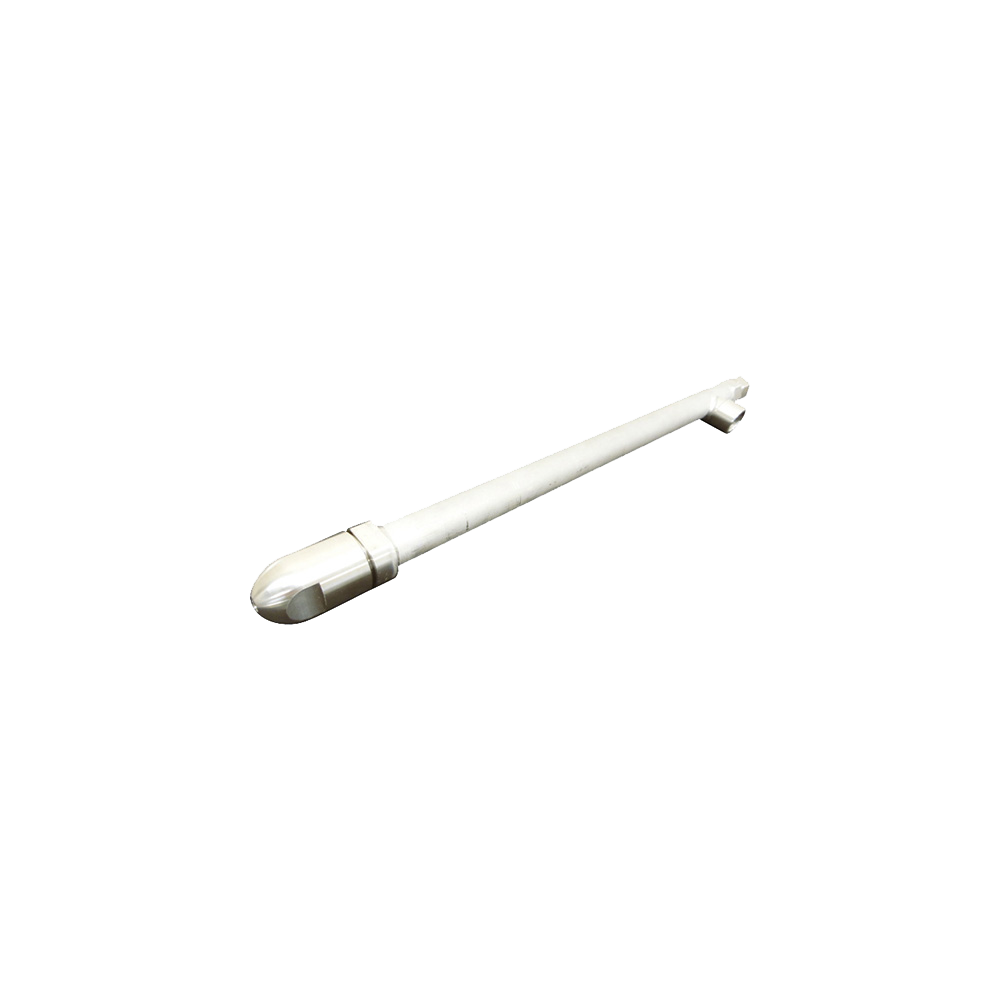

GSIM II
Large capacity fine fog, energy-saving design
Full cone pneumatic spray nozzle producing a large amount of “fine fog”.
Energy-saving design – mean droplet diameter of 50 μm and a maximum droplet diameter of 150 μm (*4) at an air-water ratio of 130.
Large turn-down ratio.
Spray angle of 20° or 60°.
Specifications
Pipe connection size
Rc1/2, Rc1/4, Rc3/4, Rc3/8
Spray angle
20 ° -
60 °
Droplet size
Fine fog (10-100 µm)
Air pressure
-
Standard pressure
2 bar -
5 bar
Spray capacity
0.25 L/min -
33.33 L/min
Free passage diameter
1.8 - 4.0 mm
Air consumption
150 L/min -
4000 L/min
Applications
Cooling
Cooling: Gas, moldings, refractories. Steel making: Cooling flue gas before gas turbine, Cooling refractories at maintenance, Rolling mill and surface finish process.
Humidification
Moisture control: Gas, concrete.
Dust suppression
Dust suppression: Recycling facilities, material facilities, moldings. Dust suppression at casting of steel, Dust suppression at casting of pig iron.
