INQB

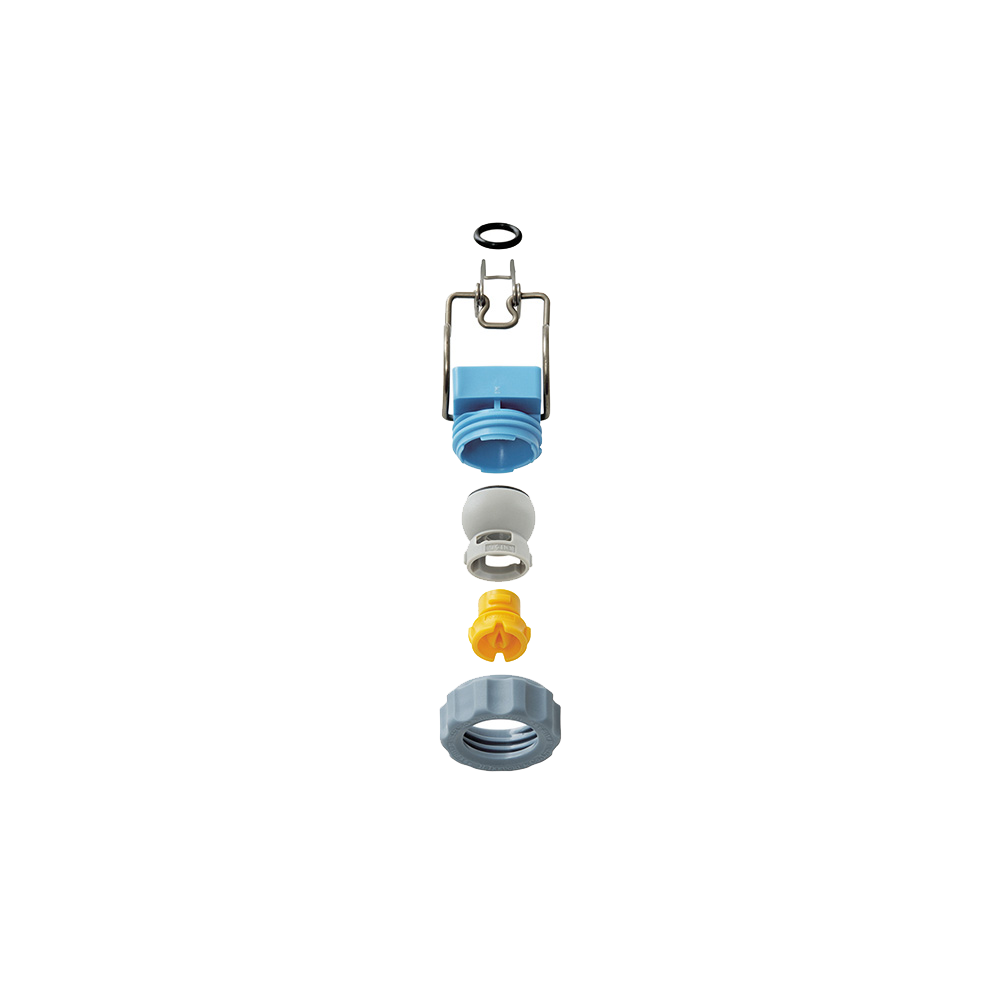

Quick-installation flat spray nozzle

Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.

Easy installation just by drilling a hole (φ14.3 mm) on a pipe and inserting a nozzle.

Easy assemble and maintenance by quick detachable nozzles.

Adaptors, color-coded by size, are available in 1″, 1 “, 1 “, 2”, 25A, and 30A. Spray tips are also color-coded by spray capacity for easy identification.

Adjust spray direction within 50° as desired.

Specifications

Pipe connection size

JIS 1", JIS 1½", JIS 1¼", JIS 2", JIS 50A, JIS25A, JIS30A, JIS40A

Spray angle

40 ° -

80 °

Droplet size

Light rain (0.3 - 1.0 mm), Fine drizzle (100-300 µm)

Air pressure

Standard pressure

1 bar -

4 bar

Spray capacity

4,62 L/min -

45 L/min

Free passage diameter

1.7 - 4.3 mm

Air consumption

Applications

Cleaning

Cleaning: water rinsing after acid treatment of steel plates, water rinsing process in food factory.

Spraying

Spraying: Pre-treatment for painting: Car, home electric appliances
