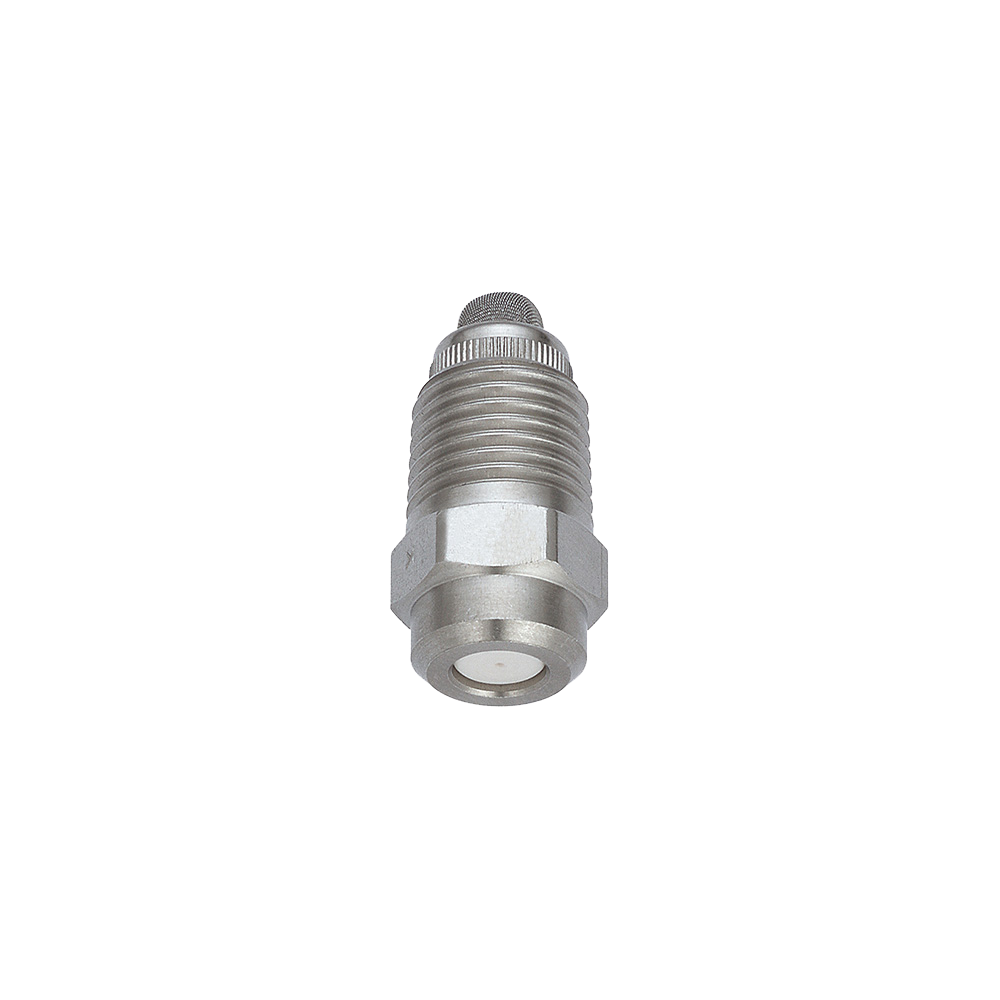

J-series
Small capacity full cone spray w/ ceramic orifice
Full cone spray pattern with a round impact area and uniform distribution.
Features smallest spray capacity among full cone spray nozzles.
Unique design developed from new engineering concept to produce fine atomization by impinging two inflows inside vortex chamber.
Ceramic orifice and closer provide excellent wear-resistance.
Specifications
Pipe connection size
R1/4
Spray angle
60 ° -
70 °
Droplet size
Fine drizzle (100-300 µm)
Air pressure
-
Standard pressure
1 bar -
20 bar
Spray capacity
0.07 L/min -
3.81 L/min
Free passage diameter
0.2 - 0.9 mm
Air consumption
-
Applications
Cleaning
Galvanizing, gas
Spraying
Oils, lubricants, glues, etchants
Cooling
Machinery, gas
