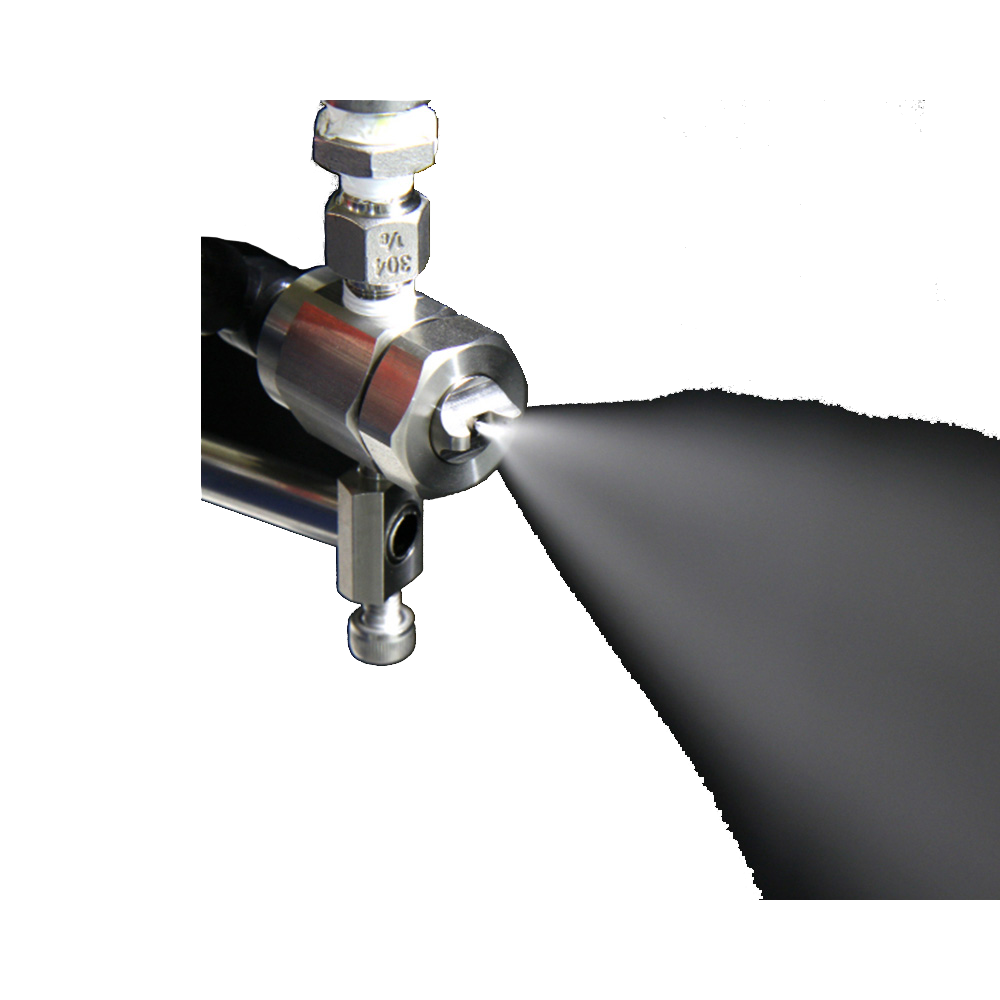

SETOV
External mixing – Liquid siphon feed type
Flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 15 – 40 μm (*2).
Spray capacity increases or decreases in proportion to the air pressure.
No dripping from the nozzles when the spray shuts off.
Liquid siphon feed type (liquid pressure device is not required). Use with the liquid pressure device is also possible.
Specifications
Pipe connection size
Rc1/8
Spray angle
55 ° -
65 °
Droplet size
Fine fog (10-100 µm)
Air pressure
-
Standard pressure
0 bar -
0.2 bar
Spray capacity
0.028 L/min -
0.177 L/min
Free passage diameter
0.6 - 0.8 mm
Air consumption
18 L/min -
90 L/min
Applications
Spraying
Disinfection
Humidification
Humidification, moisture control: Paper, cardboard.
