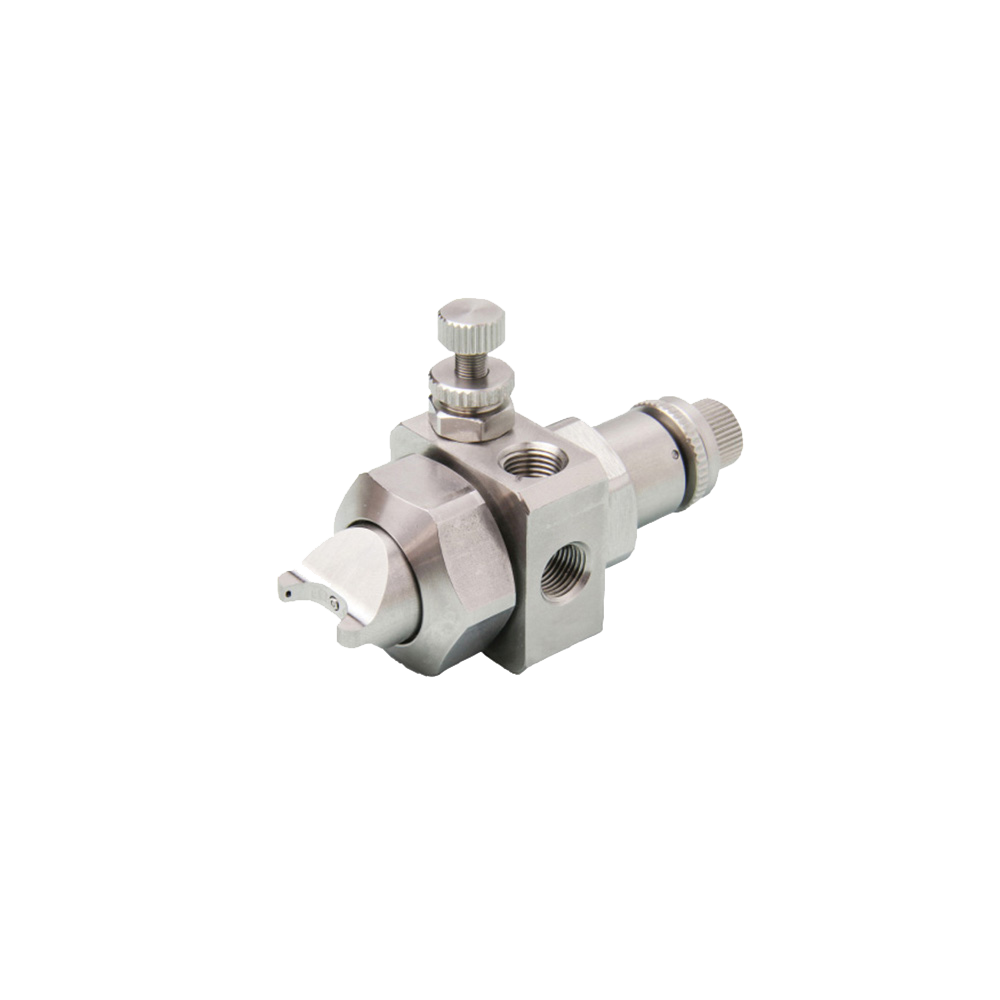

SETOV-C
Spray pattern and width adjustable (flat / full cone)
Pneumatic spray nozzle with adjustable spray width and spray pattern. When its spray pattern adjustable screw is fully open, it provides a flat spray pattern with the widest spray angle.
When its spray pattern adjustable screw is fully closed, it provides a full cone spray pattern with the narrowest spray angle.
Excellent durability; on-off operation of spray for over 5,000,000 times.
Spray capacity can be fine-tuned without changing the present pressures.
Spray on-off is controllable.
Capable of spraying high-viscosity liquid of up to 1,000 cP. (*3).
Best for coating application with less splattering.
Durable stainless steel body for long-lasting use.
Specifications
Pipe connection size
Rc1/8
Spray angle
80 ° -
80 °
Droplet size
Fine fog (10-100 µm)
Air pressure
-
Standard pressure
0 bar -
4 bar
Spray capacity
0.017 L/min -
0.5 L/min
Free passage diameter
0.5 - 0.6 mm
Air consumption
33 L/min -
200 L/min
Applications
Cleaning
Cleaning: PCB
Spraying
Spraying: Chemicals
Cooling
Cooling: Steel making.
