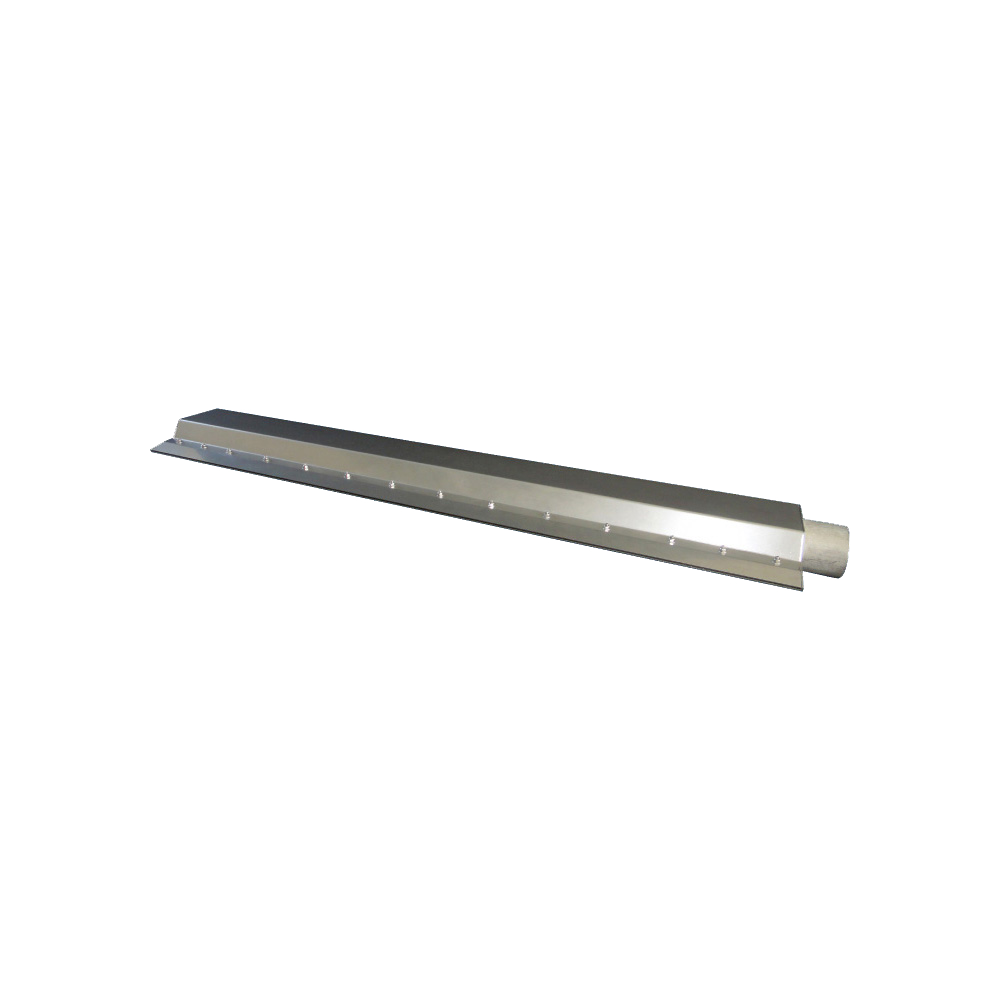

SLNB
Long thin slit (air curtain)
Pressure loss is minimal to enable high spray impact performance.
Long thin slit with tapered nose is suitable for installation in a narrow space such as between support rolls.
Drastic energy saving is achieved by switching from compressor-using type.
Specifications
Pipe connection size
D38, D50, D65
Spray angle
-
°
Droplet size
-
Air pressure
0.003
Standard pressure
-
0,03 bar
Spray capacity
-
L/min
Free passage diameter
-
Air consumption
970 L/min -
970 L/min
Applications
Blowing
Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment.
Video
Case studies
Conveyor belt sorting system with air nozzles
A customer involved in the food industry in Poland was not satisfied with the blowing performance of their...

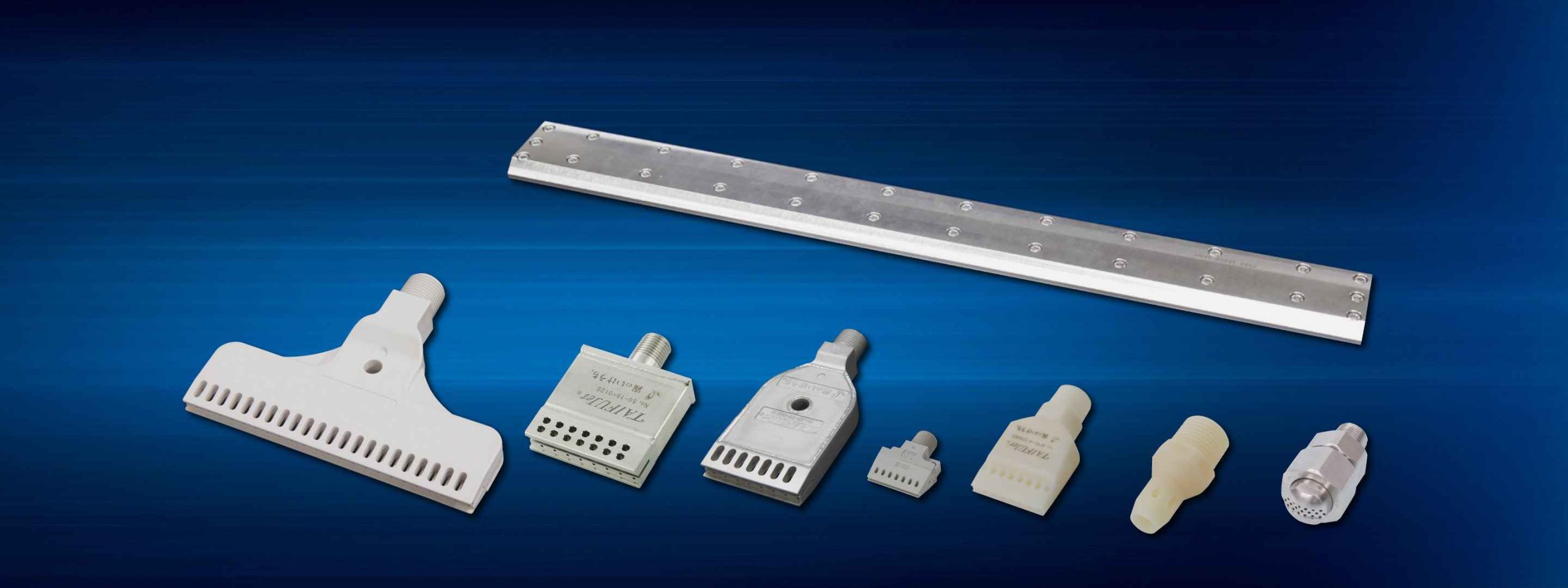

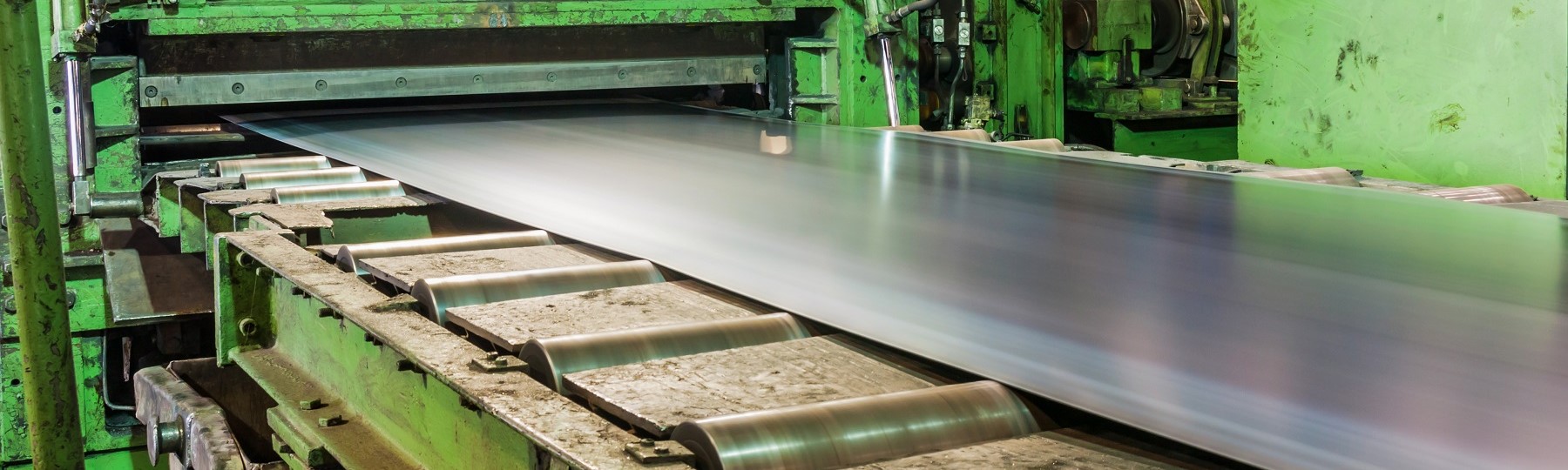

Edge wiping process improvement with TAIFUJet®
A Japanese steel manufacturer had issues with insufficient water removal during the edge wiping process. Edge wiping is...

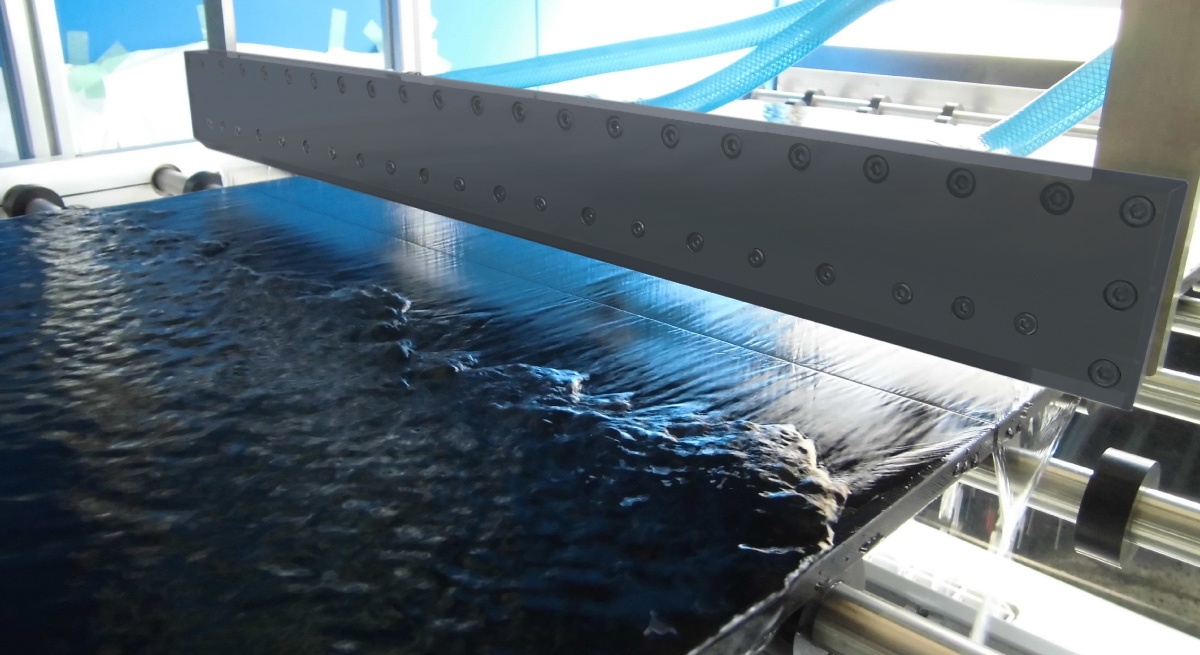

Improved slit nozzle for flat panel detector manufacturing
A flat panel detector manufacturer was looking for an improved slit nozzle for its production process. Slit nozzles,...
