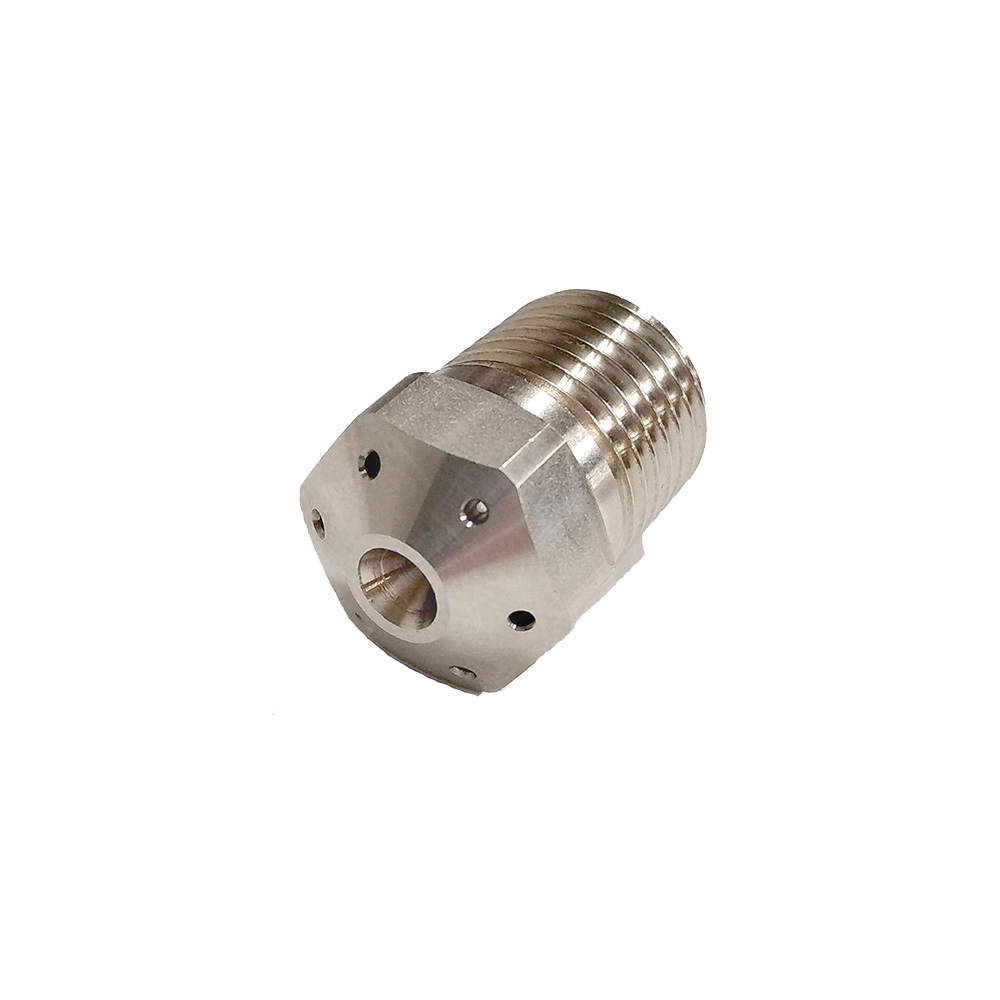

JAN
Conical Air Nozzle
Full-cone spray air nozzle with a complete conical shape.
Wide spray width of 135 mm (at 0.3 MPa), allowing for broad air blow coverage with a single nozzle.
Compact design enables flexible installation, making it suitable for integration into various equipment.
Ideal for air blowing, cooling, and gas purging.
Available in three orifice sizes: φ0.5, 1.0, and 1.5.
Specifications
Pipe connection size
R1/4
Spray angle
-
°
Droplet size
-
Air pressure
10
Standard pressure
-
100 bar
Spray capacity
-
L/min
Free passage diameter
-
Air consumption
19 L/min -
852 L/min
Applications
Cooling
Cooling
Blowing
Blow-off drying
