7JJXP-series

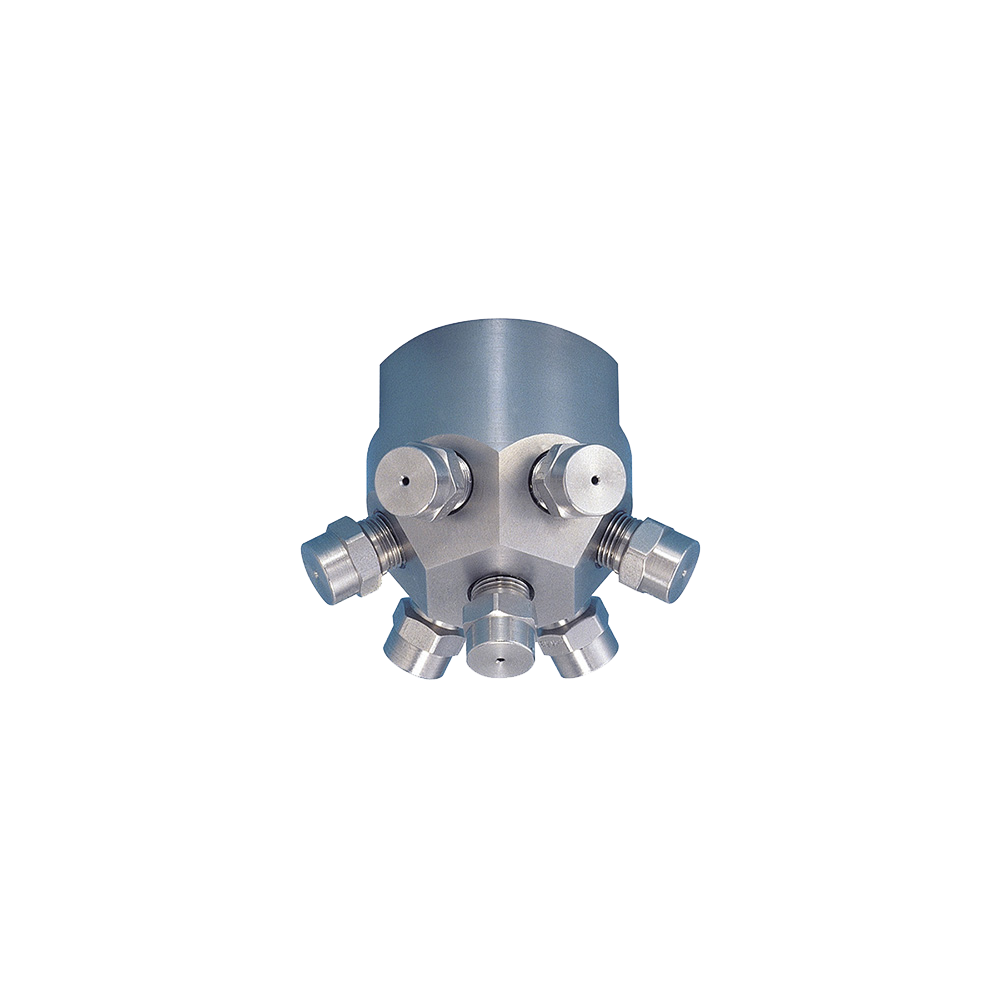

7-head full cone spray for a round-shaped spray area
Full cone spray pattern with a round superimposed impact area.
7 pcs. of JJXP series full cone spray nozzles are screwed into a very compact header.
Mean spray droplet diameter is about half that of other single-head full cone spray nozzles having the same spray capacity.
X-shaped whirler provides large free passage diameter for minimal clogging.
Specifications
Pipe connection size
Rc1/2, Rc3/4, Rc1, Rc2
Spray angle
165 ° -
185 °
Droplet size
Fine drizzle (100-300 µm)
Air pressure
-
Standard pressure
0,5 bar -
20 bar
Spray capacity
5,11 L/min -
806 L/min
Free passage diameter
0.7 - 1.4 mm
Air consumption
-
Applications
Cooling
Gas cooling
Humidification
Moisture control and Humidification.
Dust suppression
Dust suppression.
Video
Case studies
JENA botanical garden
The JENA botanical garden needed to create a jungle-like environment for its palm tree house. In order to...
Monheim Geysir
The Monheim Geysir is an artificially made geyser which suddenly erupts when the weather conditions fits. It takes...
