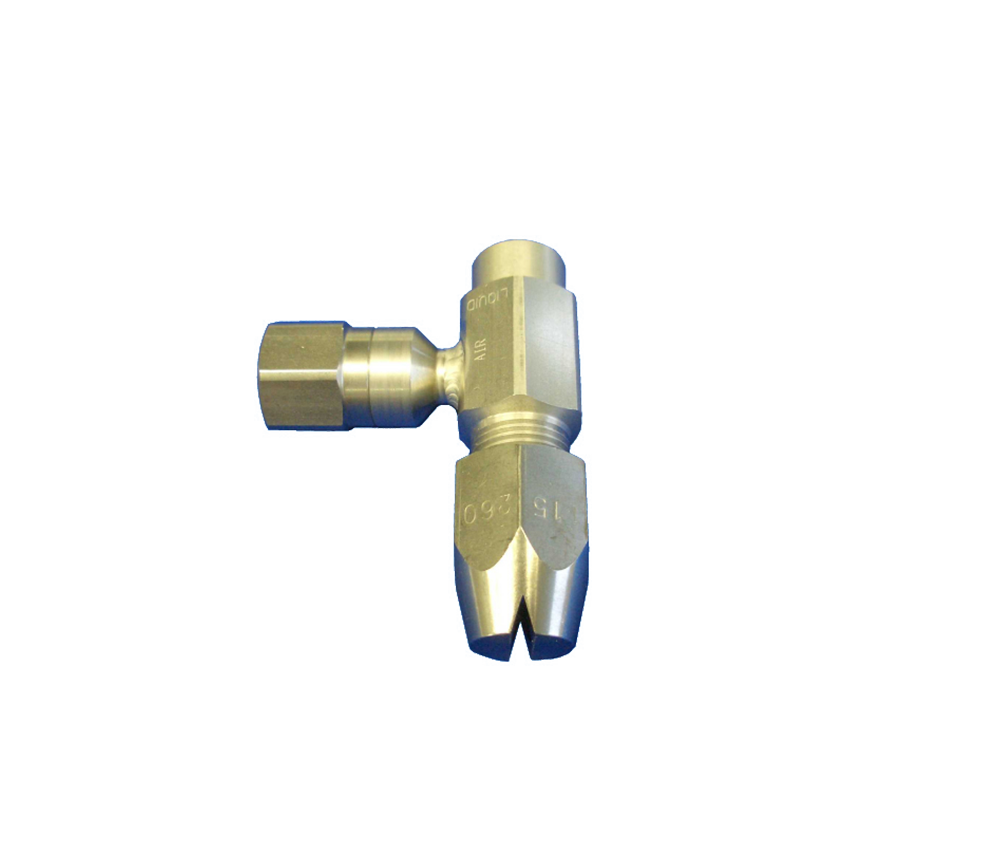

VVP+AS
Hydraulic / Pneumatic (Dual-use) Flat spray
Dual-use flat spray fog nozzle used as a hydraulic spray nozzle and a pneumatic spray nozzle.
Can be used as a hydraulic nozzle for medium/high flow rates and as a pneumatic nozzle for low flow rates.
Large turn-down ratio of 1:20.
Suitable for processes which require minimal variation in spray distribution and spray angle.
Specifications
Pipe connection size
Rc1/4
Spray angle
115 ° -
115 °
Droplet size
Light rain (0.3 - 1.0 mm)
Air pressure
-
Standard pressure
0,1 bar -
15 bar
Spray capacity
0.94 L/min -
72.49 L/min
Free passage diameter
1.4 - 3.0 mm
Air consumption
2 L/min -
30 L/min
Applications
Spraying
Rinsing after pickling
Cooling
Steel making process: Cooling continuous casted steel (bloom, slab short side, billet), cooling roll of casting machine. Rolling mill process: Cooling steel plate on continuous annealing line, roll in heat treatment, and magnetic steel
