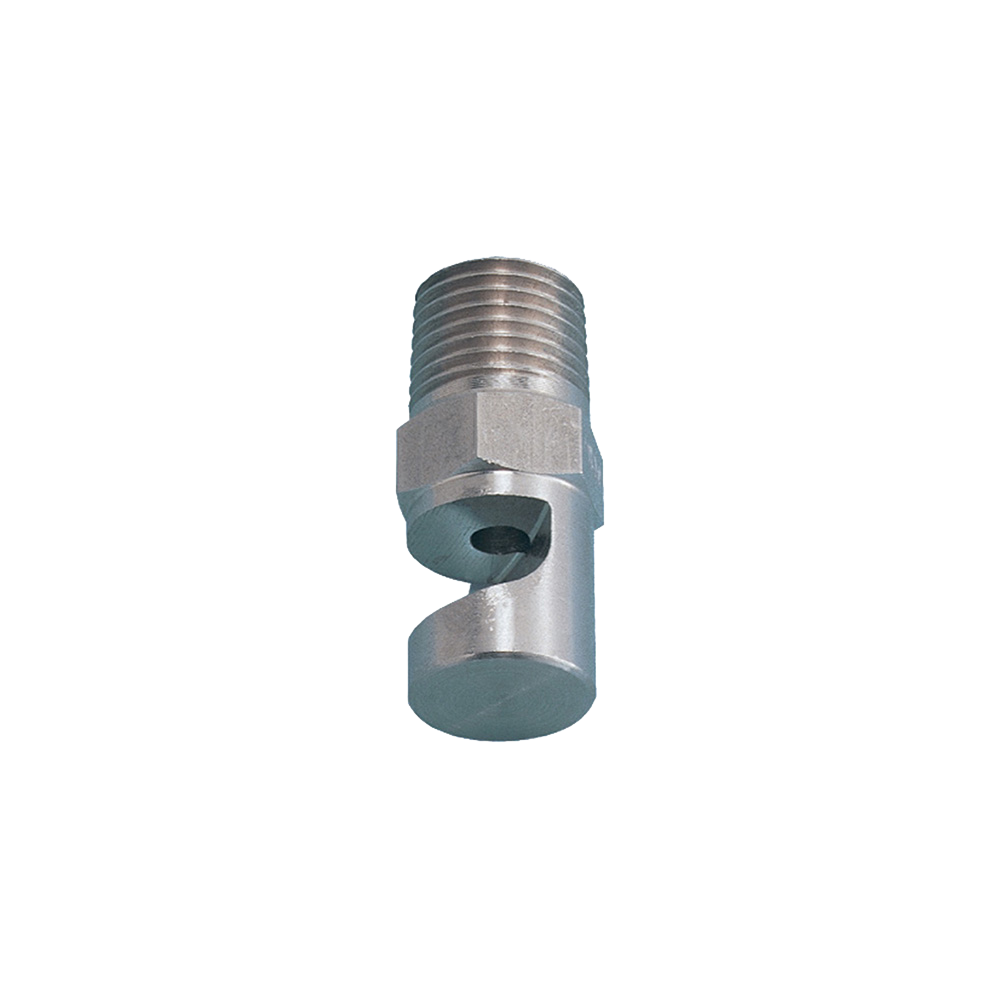

YYP
Wide-angle flat spray
Capable of generating wide-angle flat spray even at low liquid pressure.
Clog-resistant.
Spray direction is 75° to the nozzle axis.
Specifications
Pipe connection size
R1, R1/2, R1/8, R3/4, R3/8, R/14
Spray angle
100 ° -
140 °
Droplet size
Light rain (0.3 - 1.0 mm), Rain storm (above 1.0 mm)
Air pressure
-
Standard pressure
0,3 bar -
2 bar
Spray capacity
0,25 L/min -
289 L/min
Free passage diameter
0.6 - 18.5 mm
Air consumption
-
Applications
Cleaning
Cleaning: Conveyor belts, film, eliminator plates, plate glass, planks.
Spraying
Foam breaking: Wastewater treatment, paper manufactures.
Water screen
Water screen: Fire protection, heat protection, deodorization
Cooling
Cooling: Conveyor belts, roofs, tanks
Video
Case studies
JENA botanical garden
The JENA botanical garden needed to create a jungle-like environment for its palm tree house. In order to...
Monheim Geysir
The Monheim Geysir is an artificially made geyser which suddenly erupts when the weather conditions fits. It takes...
