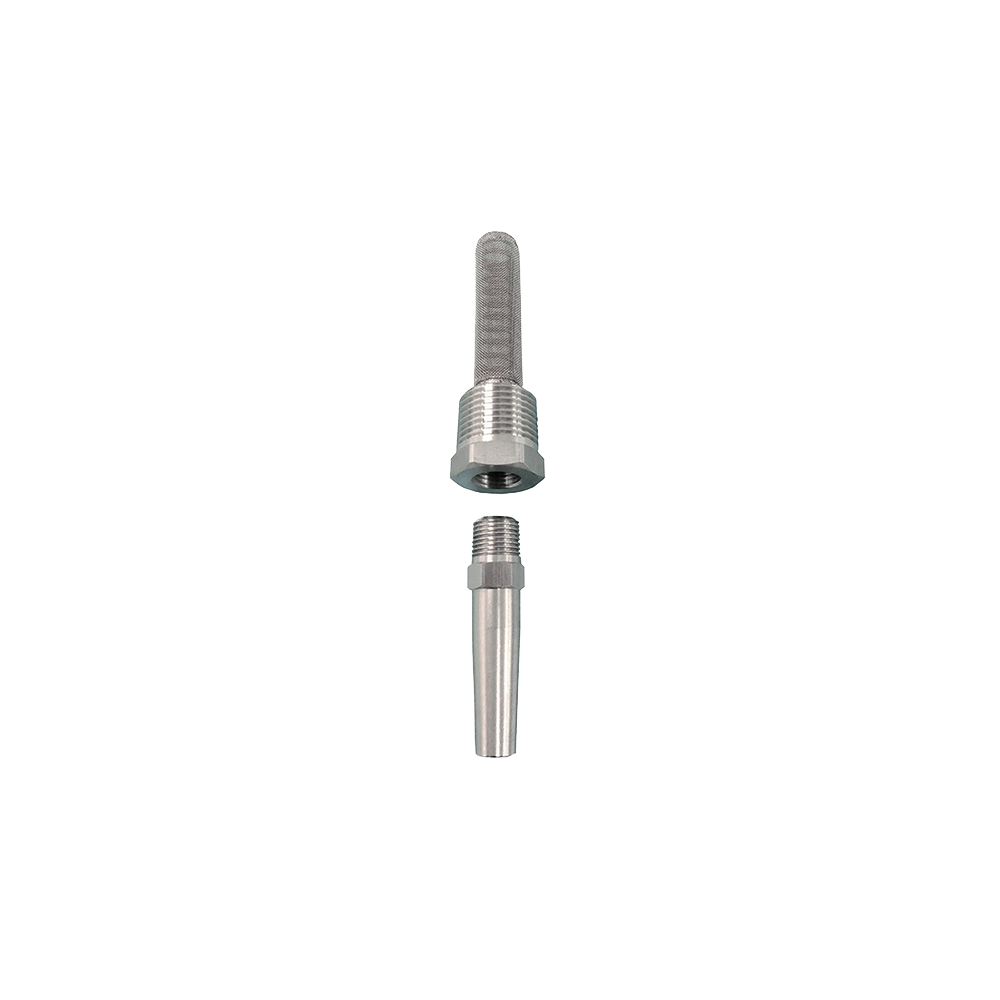

CM-F
Very fine solid stream trimming nozzle
Extra fine and clear non-turbulent solid stream nozzles with high impact cutting force.
Small, tapered nose minimizes paper dust adhesion to nozzle body.
Flat surface design of nozzle tip prevents paper dust from clogging spray orifice.
Specifications
Pipe connection size
R3/8
Spray angle
-
°
Droplet size
-
Air pressure
-
Standard pressure
5 bar -
50 bar
Spray capacity
0,10 L/min -
2,91 L/min
Free passage diameter
0,3 - 0,6 mm
Air consumption
-
Applications
Cleaning
Cleaning: precision machine parts.
Spraying
Trimming: Paper making Cutting: Food. Injection of chemicals, Deburring.
Video
Sorry, there is not yet a video for this product.
Case studies
JENA botanical garden
The JENA botanical garden needed to create a jungle-like environment for its palm tree house. In order to...
Monheim Geysir
The Monheim Geysir is an artificially made geyser which suddenly erupts when the weather conditions fits. It takes...
