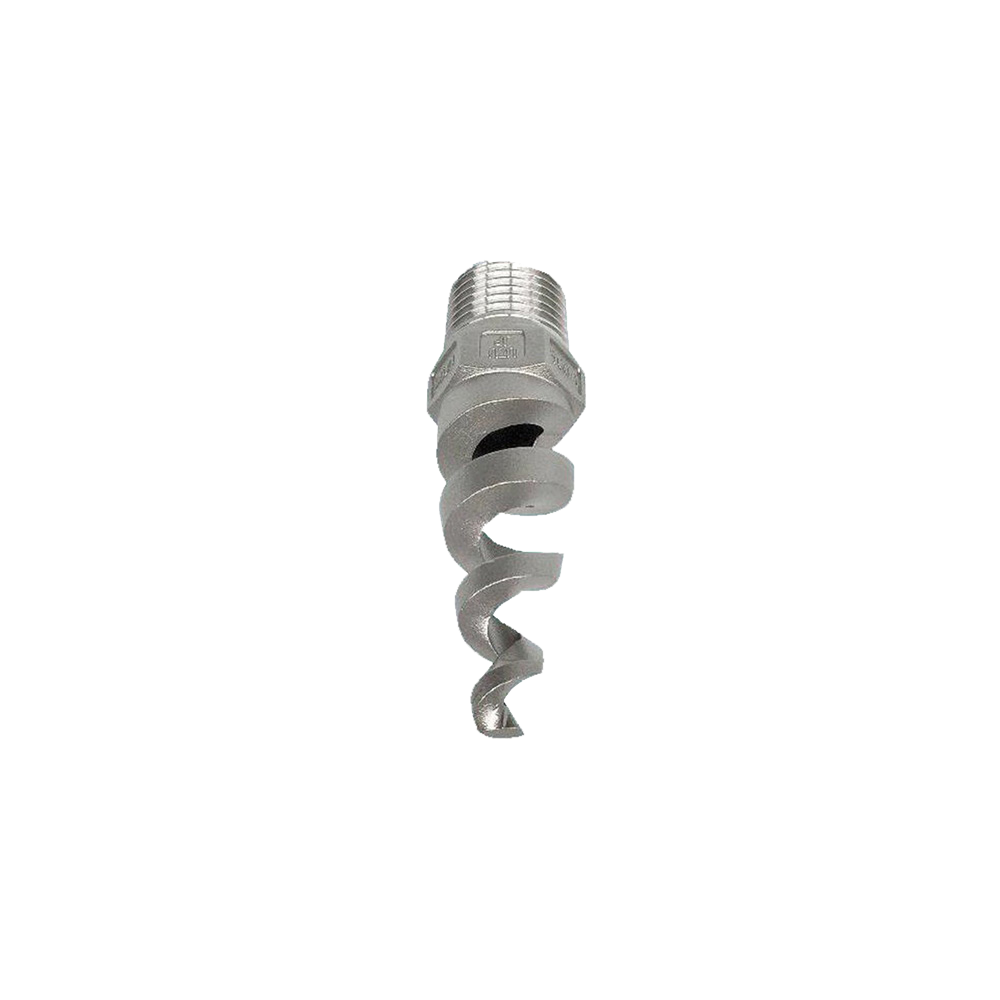

UZUJP
Clog resistant wide angle at low water pressure
Spray covers a large area even at a low water pressure.
The number of required nozzle is minimized, reducing system installation costs.
The no-whirler design, with its compact form, allows for a high spray flow rate and reduces the risk of clogging.
Specifications
Pipe connection size
R1, R1/2, R3/4
Spray angle
105 ° -
170 °
Droplet size
Rain storm (above 1.0 mm)
Air pressure
-
Standard pressure
0,3 bar -
3 bar
Spray capacity
41,1 L/min -
3,81 L/min
Free passage diameter
4.3 - 7.3 mm
Air consumption
-
Applications
Spraying
Spraying: Water spraying (Coal tower at steel mills, conveyor belt, and more).
Water screen
Fire extinguishing.
Dust suppression
Dust suppression.
Video
Case studies
JENA botanical garden
The JENA botanical garden needed to create a jungle-like environment for its palm tree house. In order to...
Monheim Geysir
The Monheim Geysir is an artificially made geyser which suddenly erupts when the weather conditions fits. It takes...
