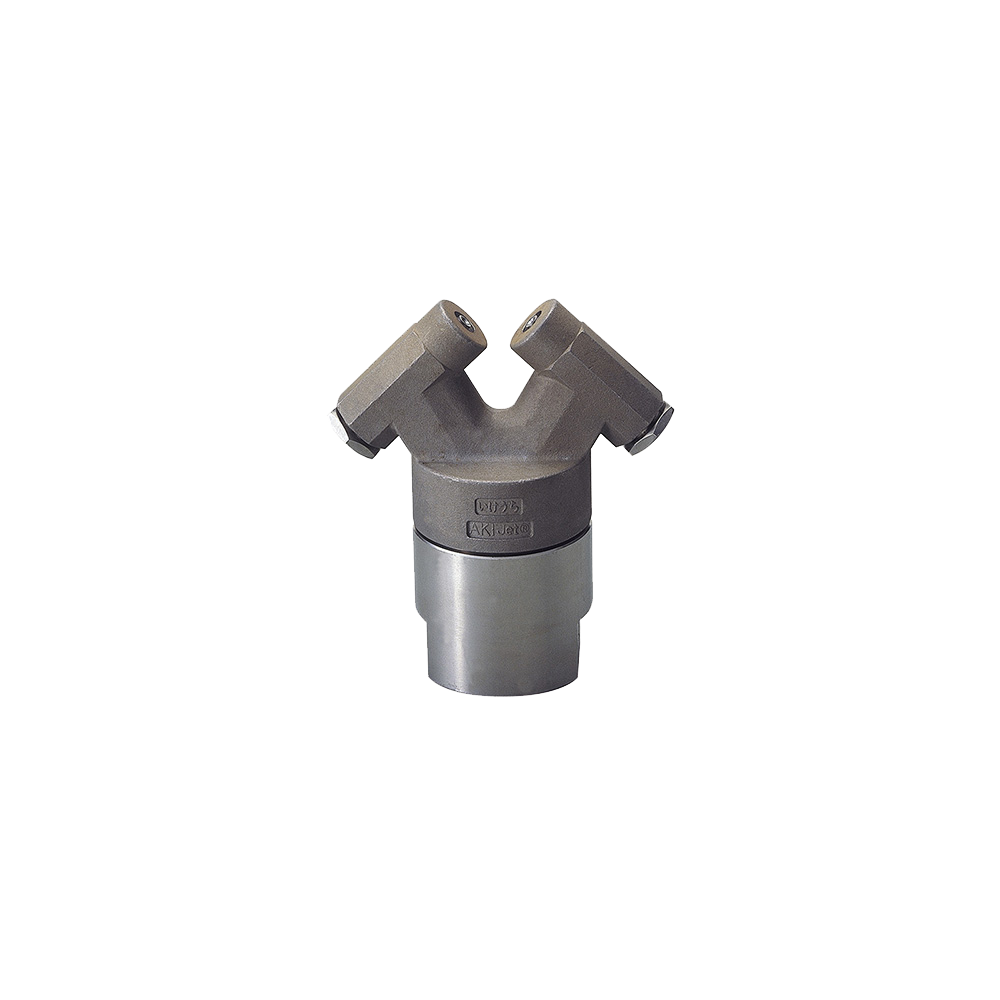

AKIJet
Impinging-type pneumatic spray nozzle
Capable of producing non-wetting dry fog with a mean droplet diameter of 10μm or less.
Fog stream, sprayed out from the two orifices apart, collides with each other and are further atomized by ultrasonic waves, resulting in creation of a uniform distribution of fine droplet sizes.
Using a special mixing adaptor, AKIJet can mix two different liquids outside of the orifices while spraying.
Specifications
Pipe connection size
Rc1/4, Rc1/8
Spray angle
60 ° -
60 °
Droplet size
Dry fog (Below 10µm)
Air pressure
-
Standard pressure
3 bar -
3 bar
Spray capacity
0.13 L/min -
8.33 L/min
Free passage diameter
0.6 - 1.1 mm
Air consumption
138 L/min -
3000 L/min
Applications
Cooling
Cooling: gas, Steel plates, moldings, refractories, glass.
Humidification
Humidification: ESD reduction.
Dust suppression
Dust suppression.
