MBW (BIM mounting bracket)
BIM mounting bracket

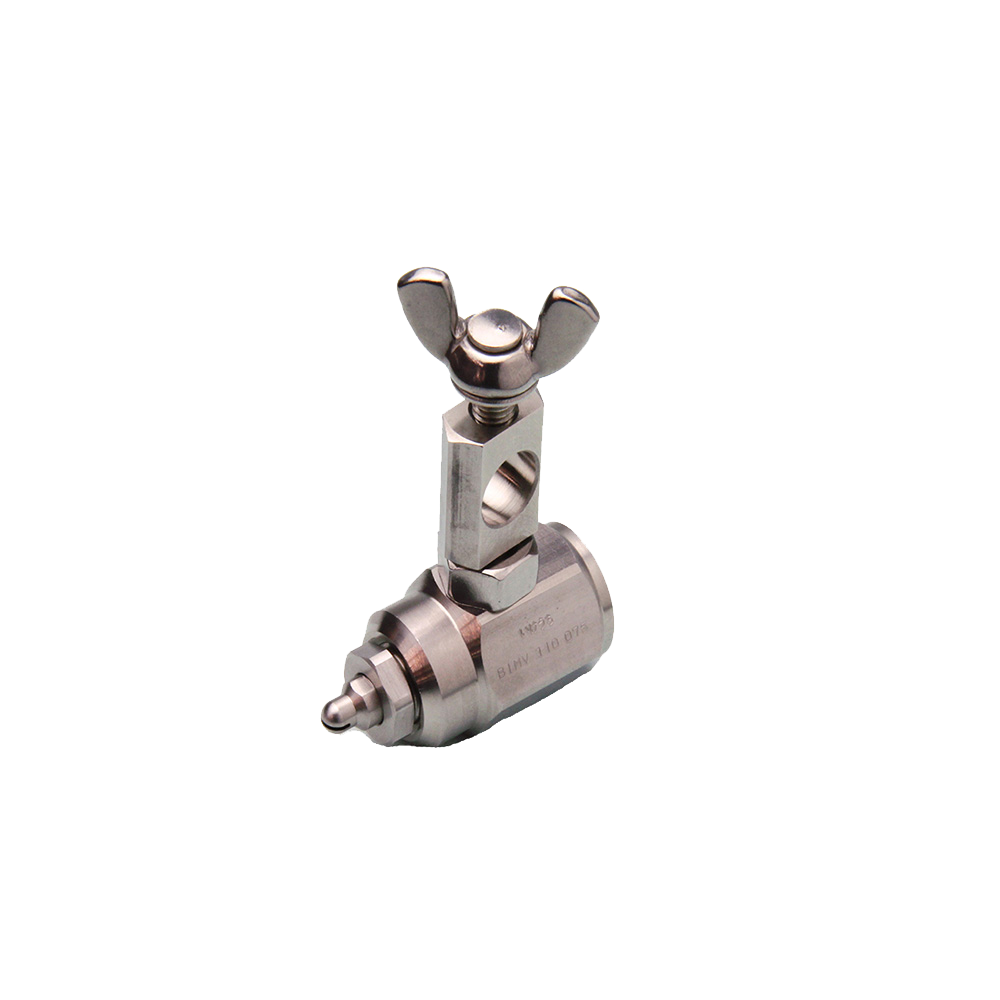

This mounting bracket allows for easy installation of BIM series nozzles to a metal pole/rod in the desired spray direction.
Available in two sizes for pipe diameters of 8 mm and 10 mm.
When ordering, specify BIM φ MBW for φ8 mounting bracket, or BIM φ10 MBW for φ10 mounting bracket.
Available for all adaptor types except N-type adaptor.
Specifications
Pipe connection size
M10, M8
Spray angle
-
°
Droplet size
-
Air pressure
-
Standard pressure
-
bar
Spray capacity
-
L/min
Free passage diameter
-
Air consumption
-
Applications
Spraying
The BIM mounting bracket, MBW series, is used for fixing nozzle position for the BIM series nozzles.
