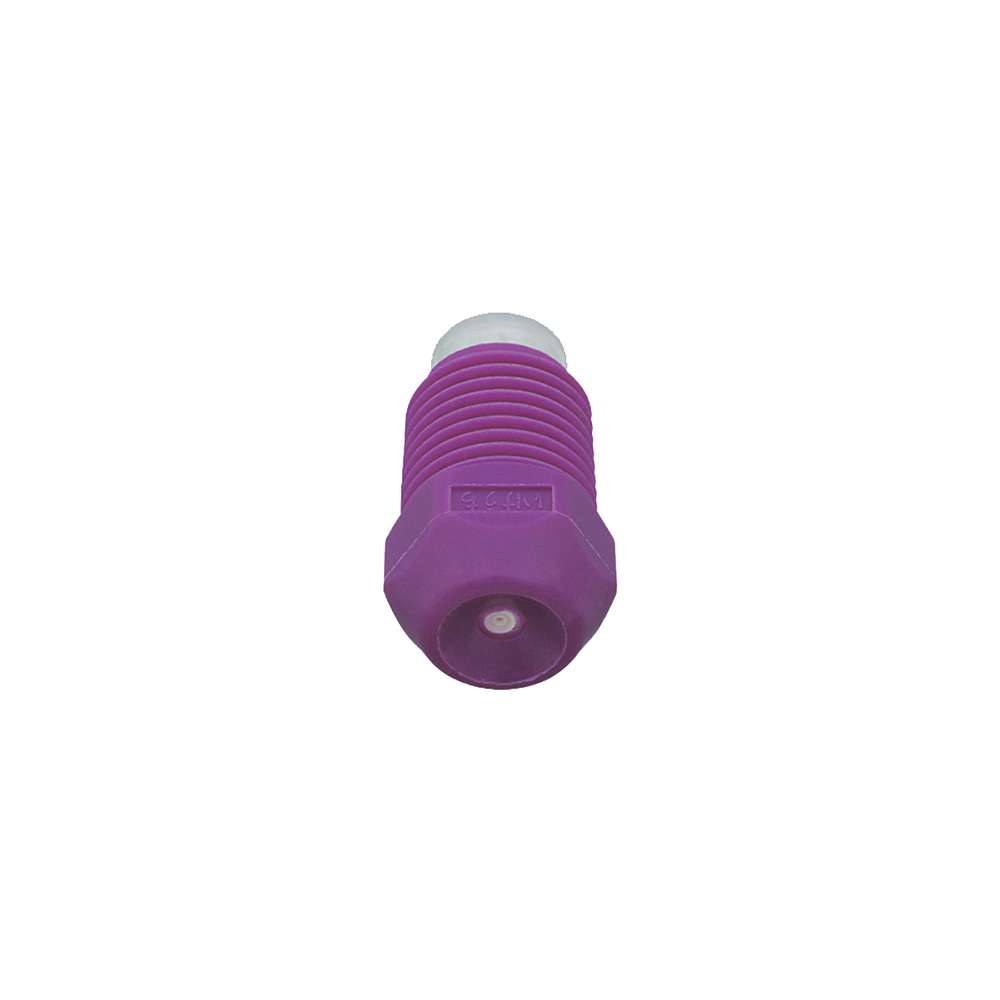

KBN
Extremely fine fog & ultra-small capacity hollow cone spray
Ultra-small capacity hollow cone spray nozzle with the finest atomization among hydraulic nozzles.
Capable of generating extremely fine spray.
Minimal clogging with free passage diameter 1.3 – 2.6 times bigger than that of conventional nozzles.
The whirl chamber is formed by a ceramic orifice and closer, which provides excellent wear resistance.
Specifications
Pipe connection size
R1/4, 1/4M(NPT)
Spray angle
80 ° -
80 °
Droplet size
Fine drizzle (100-300 µm)
Air pressure
-
Standard pressure
5 bar -
70 bar
Spray capacity
0.019 L/min -
0.355 L/min
Free passage diameter
0.20 - 0.60 mm
Air consumption
-
Applications
Spraying
Spraying: Alcohol, disinfectant.
Cooling
Cooling: Poultry farms, Outside cooling.
Humidification
Humidifying: Air handling units, greenhouses.
Video
Case studies
JENA botanical garden
The JENA botanical garden needed to create a jungle-like environment for its palm tree house. In order to...
Monheim Geysir
The Monheim Geysir is an artificially made geyser which suddenly erupts when the weather conditions fits. It takes...
