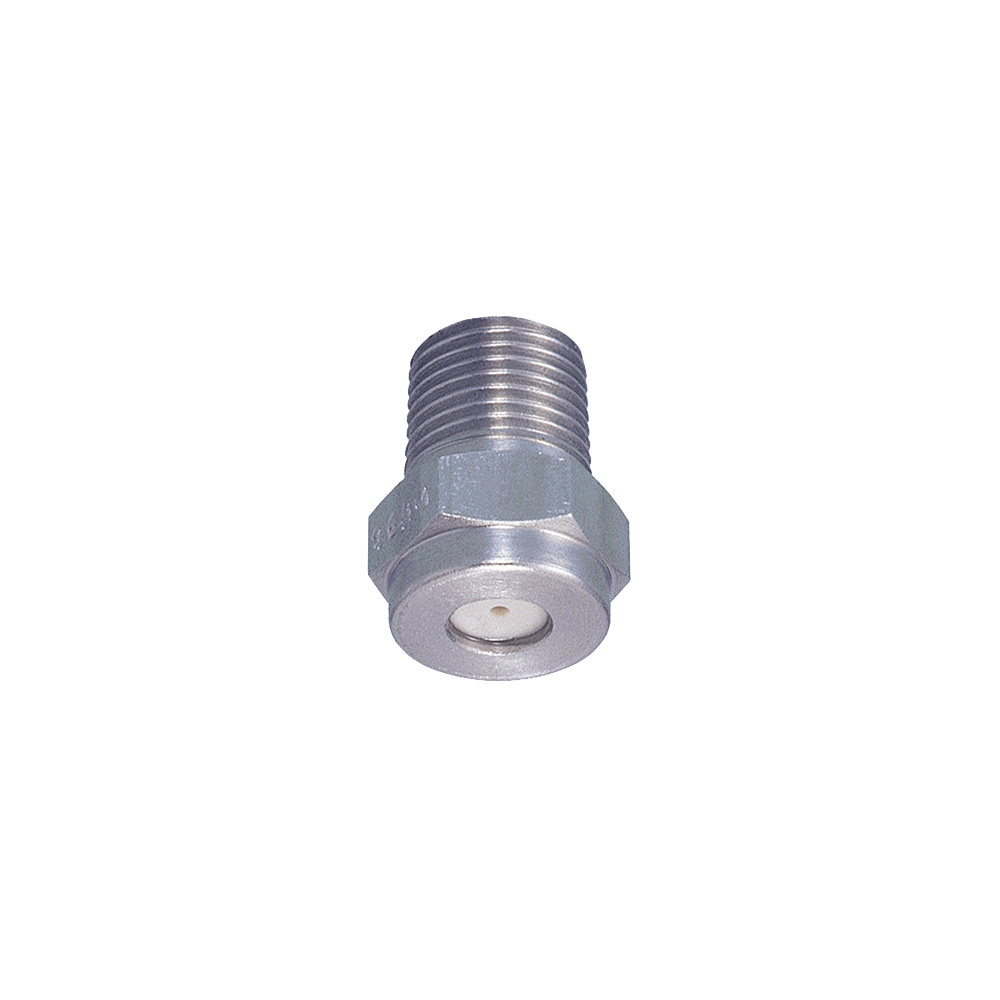

Standard solid stream jet with ceramic orifice

CP series

CP series


The CP series* nozzles’ features:

  • Our highest impact solid stream.
  • Interior design featuring minimal pressure drop generates large flow of solid stream jet.
  • Impact of turbulent flow inside the piping can be minimized.
    *The small orifice diameter series (ø0.1-ø0.8) are made-to-order

  Download CAD model   Contact us

Pipe conn. size

R 1/8" - R 3/8"

Spray angle


Mean droplet diameter



Available for some nozzle codes

Standard pressure

3 MPa (ca. 30 bar)

Spray capacity

0.034 - 104 L/min

Air consumption


Free passage diameter

0.1 - 5.4 mm


The CP series nozzles have multiple applications:

  • High pressure cleaning: Wire and felt parts of paper making machines, vehicles, returnable containers, machinery, parts
  • Trimming: Paper making
