How to determine a good nozzle performance
How to determine a good nozzle performance?
Nowadays as a consumer, we are constantly looking for faster delivery, cheaper price, quick response time, in order to be able to fit in a tight budget-and schedule. Living in a digital world, it is also quite easy to have access to goods online and coming from all over the world. But getting a cheaper produced nozzle has consequences for the nozzle performance and for your business.
What is the real advantage of getting an equivalent product if its quality is not as promised?
Purchasing a cheaper produced nozzle might be interesting in the short term (cheaper price and more quantity purchased) but the consequence on the long term will be costly (repetitive order, risk of accidents, increase of maintenance, higher running cost).
A good nozzle performance will follow the characteristics as described in the catalog. Each nozzle is designed to provide the same performance within one series. Thus, there is no variation in quality between nozzles, compared to low quality ones.
Copy products of our nozzles: high quality vs. cheap production
Here are 3 tricks to recognize a good nozzle:
- The manufacturing process of the nozzle
- Its spraying distribution
- Its spray impact
1. Manufacturing process
To produce a nozzle, there are 2 main methods (most commons):
- Machining the core material to shape it into the wanted design
- Molding the core material by injecting it in a designed mold
When producing a spray nozzle through injection mold, there is less margin for production errors as the initial mold determine the final shape of the nozzle. However, as soon as the nozzle need precise tooling to shape the orifice, this is where the difference between cheap and high-quality nozzle is visible.
One of the visible points to recognize a cheap produced nozzle is the imprecise tooling during the manufacturing process which will result in:

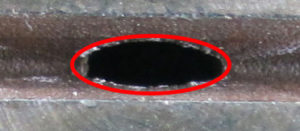

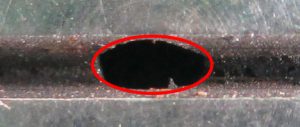

- Burrs (or “teeth”) at the orifice easily noticeable, but also inside the nozzle’s structure (less visible);
- Visible streaks in the sprayed water pattern.

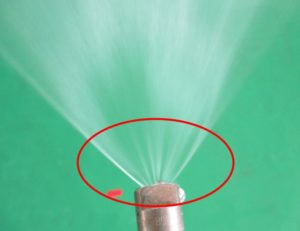

When spraying a nozzle with burrs, you will see streak of waters clearly visible in the water flow. This is an indication of low-quality manufacturing product made with imprecise tooling.
A spray flow with streaking will have an uneven water density and impact resulting in a larger amount of water consumption, insufficient performance and increase in running cost.
Enjoying this article?
Join our nozzle newsletter community to
receive the latest news and updates.
2. Spraying distribution
As a direct consequence of a cheap production quality is a poor performance. You will not reach the result expected with a disparate spray capacity (streaking) and an irregular spray angle (insufficient coverage).
When using nozzles with low and inconsistent quality, it is also difficult for you to design an effective layout and to reach the quality of your end product as expected.
What is the consequence for you if you choose to purchase a lower unit price nozzle with unsteady performance? You will increase your cost and face a decrease in your productivity and efficiency.
How to visually recognize a disparate distribution?
3. Spray impact
After checking the spray nozzle’s shape (manufacturing process) and its spraying performance, the most important aspect of the nozzle is the desired impact for the application you are looking for.
Let’s take a trimming nozzle example: It needs a straight solid jet to cut perfectly.
- So, what happen if the impact is weaker? Maybe increasing the water pressure would help. But that means increasing your running cost again.

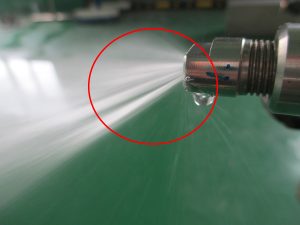

- What happen if the nozzle drips? This consequence can simply damage the end product if the water drops disturb the production line’s quality.
Therefore, it is important to have a stronger impact with less water used for saving cost and increase productivity.

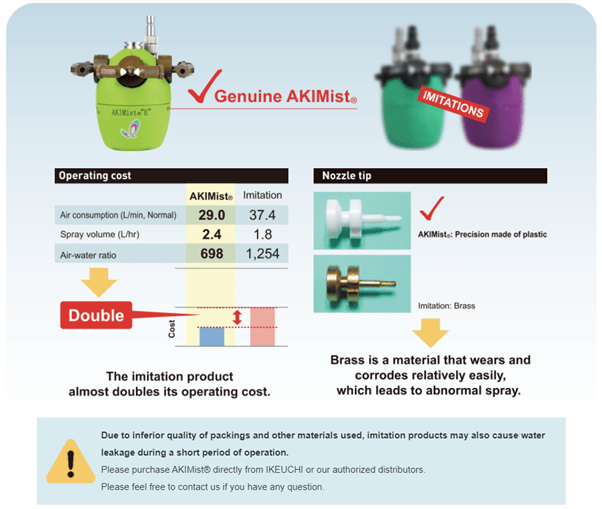

Copy products of our humidifier with lower performance on the market
When using copy products of our Dry Fog humidifier AKIMist ®, there is no guarantee of performance and it has a lower quality.
How to distinguish our Dry Fog humidifier AKIMist®”E”:

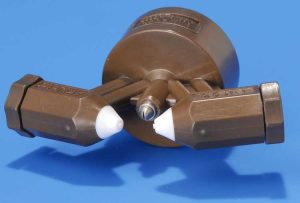

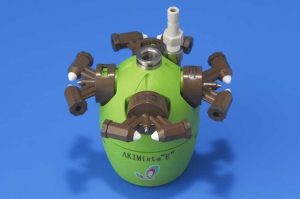

Below you can see our original Dry Fog humidifier AKIMist®”E” with 2 nozzles spraying (left picture) and with 4 nozzles (right pictures).
Here are some clues to help you recognize the copy products:
- Wrong number of nozzles: our AKIMist®”E” has a maximum of 4 nozzles
- Different color:
- Body: the green color is either more flashy or darker than our green. Or even sometimes it is not even green color…
- Nozzle: our nozzles are brown with a white top towards the orifice. If they are darker or black, it is not produced by IKEUCHI.

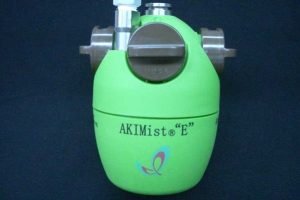

- Different name on the body: our product is called AKIMist® “E” (in Japanese アキミスト® “E”)
- Different logo on the body (see our logo next to our company name)
So how important is the difference in manufacturing processes with copy products?
To answer to this question, it comes down to the spray nozzle’s performance and the consequence on your manufacturing process and the quality of your final product.
Choosing the right spray nozzle or humidifier is crucial for your manufacturing process, the quality of your end product, and your productivity by reducing your costs.
Performance of Ikeuchi products vs. copy products
If nozzles have burrs at the orifice due to an imprecise tooling for example, then you can be sure that you will have an inconsistent performance.
Burrs and streaks in the spray pattern have impacts on the spray pattern, the spray distribution, the impact strength, and the water consumption.
A spray nozzle with a production error will have an uneven water density and impact which means for you:
- Larger amount of water consumption;
- Insufficient performance;
- Easily clogged nozzles;
- Increased in running cost;
- Poorer quality for your final product;
- Increased maintenance time and cost to replace the damaged nozzles;
- Increased replacement time of the nozzles.
When one nozzle has a low performance, the results in a multi-nozzle arrangement will have an even worse performance.
If you use a copy product of our Dry Fog humidifier, the consistency of the water droplets size is uneven. Therefore, you are risking your production by getting it wet. You will also increase your cost by consuming more air, needing more maintenance and replacement due to lower-quality parts.
Guarantee of performance as a spray and air nozzle manufacturer
As a nozzle manufacturer, we take upon our responsibility to provide a high-quality product to our customers. Therefore, we always test the quality of one nozzle per batch of production to ensure we always deliver high quality.
We officially guarantee the performance of our nozzles in terms of:
- spray capacity;
- spray angle;
- and spray angle tolerance for solid stream jet nozzles.
Benefit of a good performance product to help you deliver a high-quality final product for your business.
As a nozzle manufacturer with a high standard, the quality of our nozzles is our priority. Delivering a well manufactured, high-quality nozzle is a standard for our factories and we always test a nozzle per batch of production to keep our promise of high standard.
Please do not confuse our quality products to the copy products available on the market.
Contact us if you want more information about our products.
