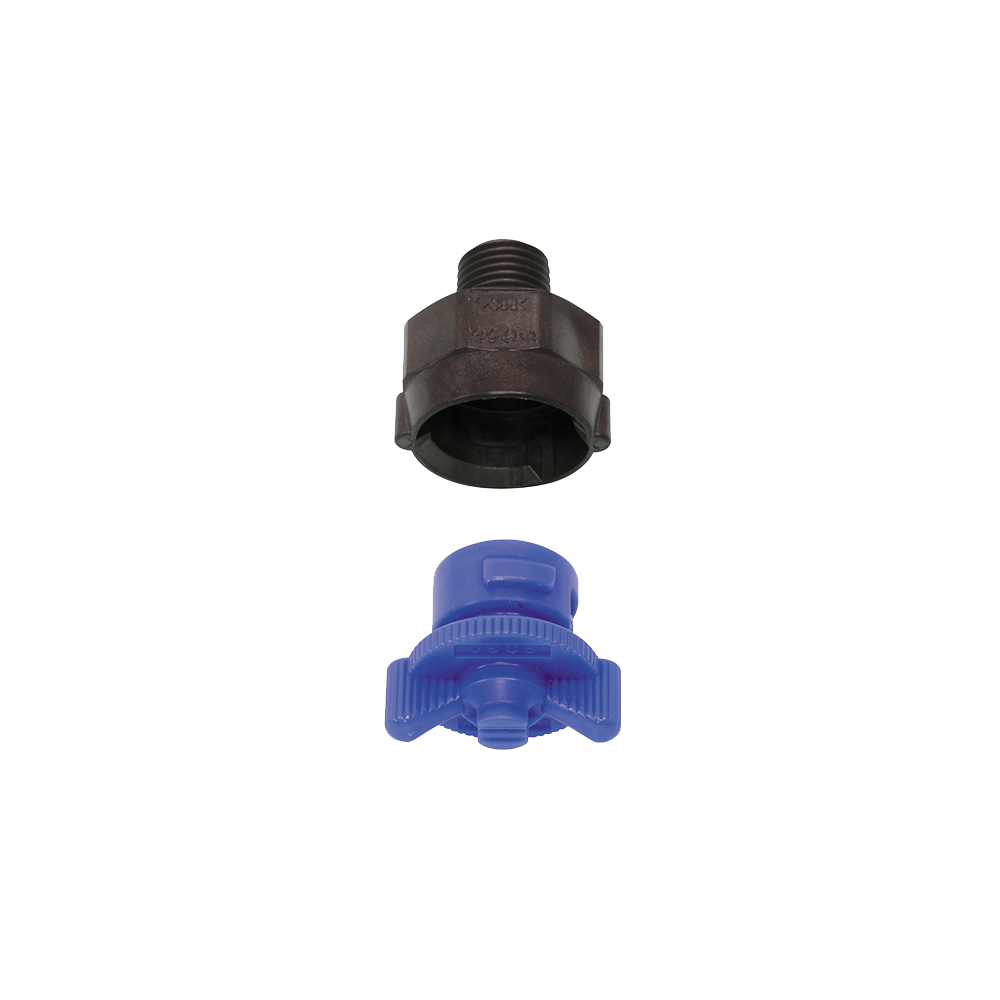

Quick-detachable even flat spray w/ ceramic orifice

INVE series

INVE series


The INVE series nozzles’ features:

  • Flat spray pattern with a uniform distribution throughout pattern area.
  • Even spray impact across the entire spray area.
  • Quick-detachable design helps to greatly reduce maintenance time.
  • Easy mounting/dismounting with a knurled tab.
  • No falling off of tip or packing when removing the nozzle part.
  • Nozzle body and adaptor are made of stainless steel which provides high heat resistance and durability.
  • Nozzle orifice is made of high wear resistant ceramic.
  Download CAD model   Contact us

Pipe conn. size

R 1/4"

Spray angle

15 - 115°

Mean droplet diameter

250 - 850 μm


Not included

Standard pressure

0.3 MPa (ca. 3 bar)

Spray capacity

1.9 - 15.7 L/min

Air consumption


Free passage diameter

1.0 - 3.5 mm


The INVE series nozzles have multiple applications:

  • Cleaning: Automotive, containers, films, felts, filters, screens, bottles, crushed stones, earth and sand, metal parts, machines, steel plates and pieces
  • Spraying: Oils, lubricants, glues, insecticides, herbicides
  • Cooling: Tanks, roofs
  • Water screen: Dust suppression, deodorization
  • For the applications where precise spray alignment and/or periodic maintenance is required
