Even spray distribution

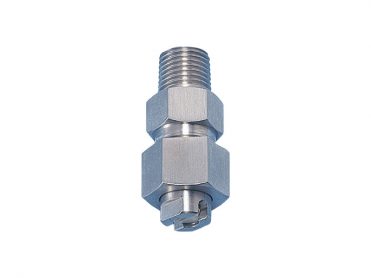

3 piece structure even flat spray with ceramic orifice

VE series

VE series

VE series

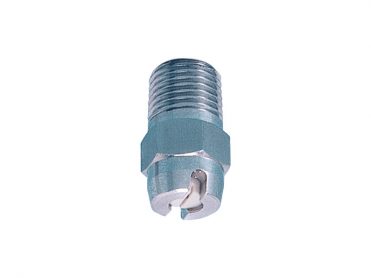

1 piece structure even flat spray with ceramic orifice

VEP series

VEP series

VEP series

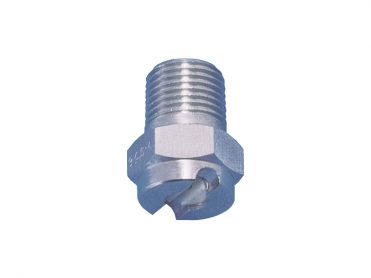

High pressure cleaning even flat spray w/ ceramic orifice

VNP series

VNP series

VNP series

Quick-detachable even flat spray w/ ceramic orifice

INV series and INVE series

INVE series

INVE series

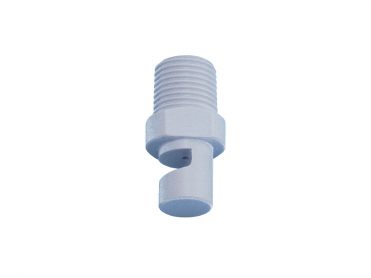

Wide-angle flat spray for ultra-low pressure spraying

LYYP series

LYYP series

LYYP series

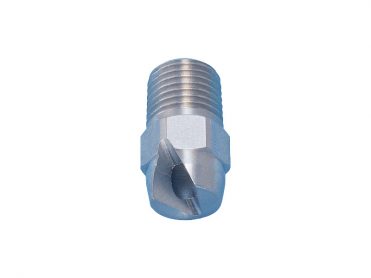

Off-center even flat spray with uniform distribution

OVVEP series

OVVEP series

OVVEP series

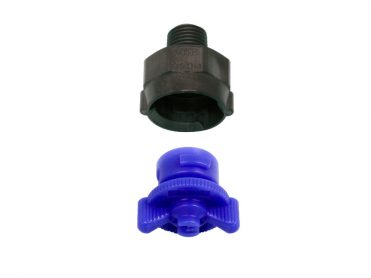

Quick-detachable off-center even flat spray

INOVVE series

INOVVE series

INOVVE series

Thick flat spray with even distribution

WVVEP series

WVVEP series (Made-to-order)

WVVEP series (Made-to-order)

Hydraulic nozzle with a flat spray distribution.

VVEP series (Made-to-order)

VVEP series (Made-to-order)

Even flat spray with a large turndown ratio

VVEP-HL series

VVEP-HL series

VVEP-HL series

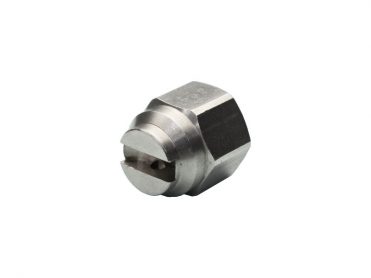

Thick flat spray with uniform distribution

DDRP series

DDRP series (Made-to-order)

DDRP series (Made-to-order)

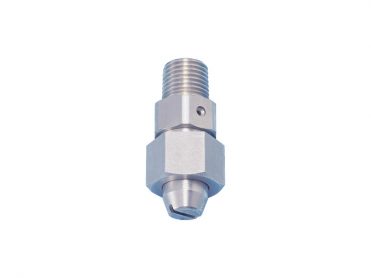

Air mixing type large thick flat spray

EJVV series

EJVV series

EJVV series

Even flat spray distribution nozzle is a included in the flat spray nozzles group. We designed the flat spray pattern nozzles to produce a controlled distribution that regulates the spray impact as needed. Thus, the spraying distribution depends on spray height, nozzle spacing, liquid pressure, and liquid’s origin. Furthermore, it is not possible to get the desired spray distribution if the spray nozzles have some variation in product quality. Because of this, IKEUCHI’s hydraulic spray nozzles are guaranteed for spray angle and spray capacity so that the spray distribution is maintained as designed.



What is an even flat spray distribution?

The spray distribution means the distribution of spray flows in the spray width direction. An even flat spray distribution is suitable for applications like cleaning that require uniform spray impact across the entire spray width. The spray distribution varies depending on the spray height and pressure. Moreover, the nozzles with an even or non-tapered spray distribution are applicable in settings without an overlap in spraying areas.



Types of even spray nozzles

Currently, our range of even flat spray nozzles includes products fabricated out of:

  • stainless steel,
  • plastic,
  • or stainless steel with a ceramic orifice.

Functional

Functional

Functional



At IKEUCHI, we have determined the fundamentals to select the optimal nozzle for your application based on their characteristics. When inquiring about a nozzle, we advise you based on your required spray angle, spray capacity, optimum spray pattern, and spray distribution.



If you have technical question about nozzles, need advice to choose, or request a quote,

Contact us

Even flat spray distribution nozzle for cleaning applications.
