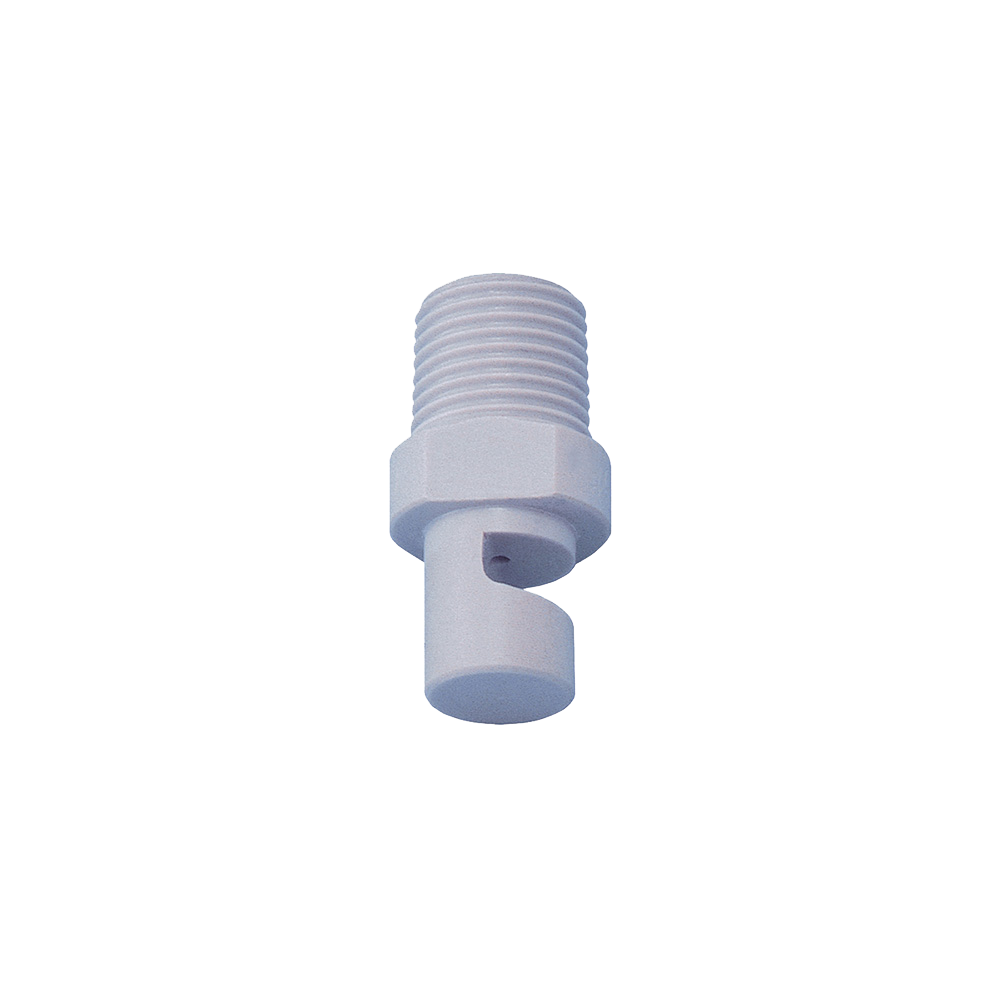

Off-center even flat spray with uniform distribution

OVVEP series

OVVEP series

Pipe conn. size

R 1/4"

Spray angle

45 - 60°

Mean droplet diameter

540 - 750 μm

Strainer

Not included

Standard pressure

0.3 MPa (ca. 3 bar)

Spray capacity

20.0 - 30.0 L/min

Air consumption

-

Free passage diameter

2.4 - 4.0 mm

Features

The OVVEP series nozzles’ features:

  • Off-center flat spray with uniform distribution throughout entire spray pattern solves the problem of accumulation of spray fluid in multiple-nozzle arrangements.
  • No need for oblique installation, as the angle is built-in.

Applications

The OVVEP series nozzles have multiple applications:
