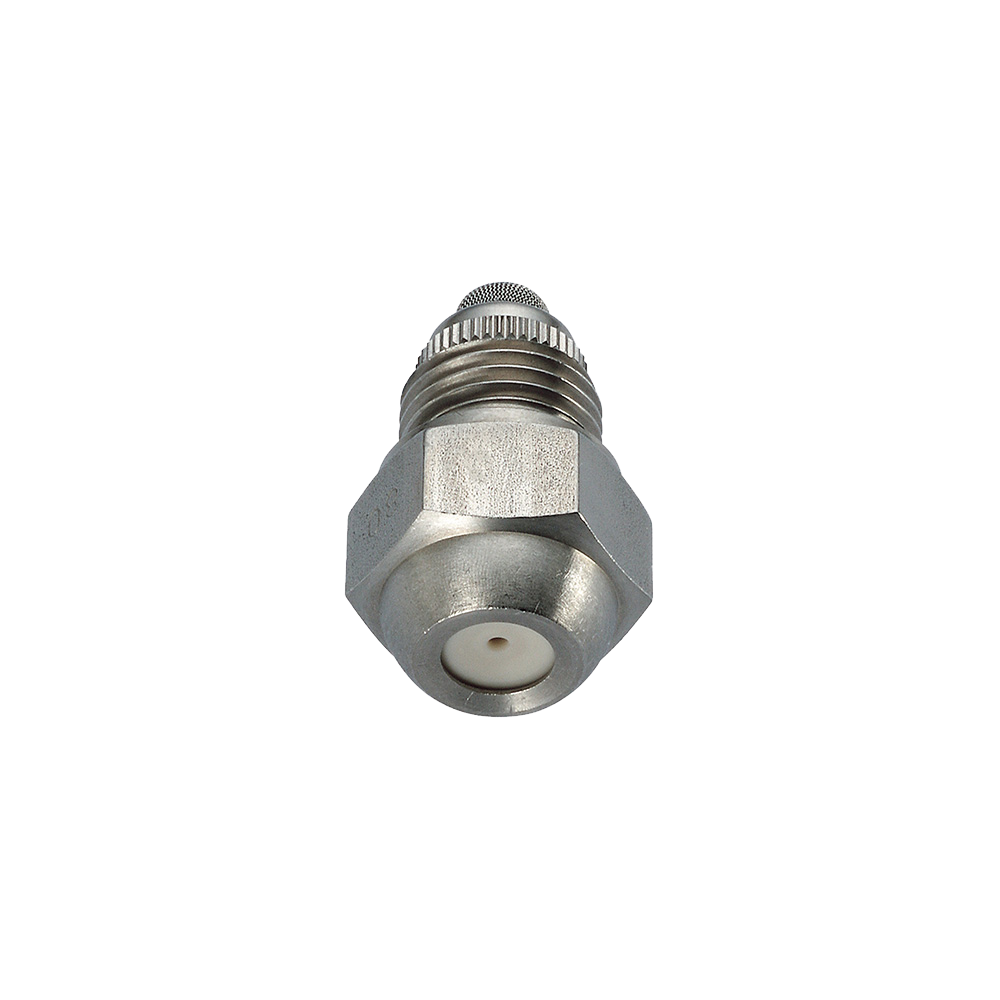

Extremely fine fog ultra-small capacity hollow cone spray

KB series

KB series


The KB series nozzles’ features:

  • Ultra-small capacity hollow cone spray nozzle with the finest atomization among hydraulic nozzles.
  • Capable of generating extremely fine spray.
  • The whirl chamber is formed by a ceramic orifice and closer, which provides excellent wear resistance.
  Download CAD model   Contact us

Pipe conn. size

R 1/4"

Spray angle

60 - 80°

Mean droplet diameter

45 - 210 μm


Included or available

Standard pressure

0.7 MPa (ca. 7 bar)

Spray capacity

2.00 - 107 L/hr

Air consumption


Free passage diameter

0.15 - 0.60 mm


The KB series nozzles have multiple applications:

  • Humidifying: Air handling units, green houses
  • Cooling: Gas, thin plates, poultry
  • Spraying: Alcohol, chemicals
