Semi-fine atomization & small capacity

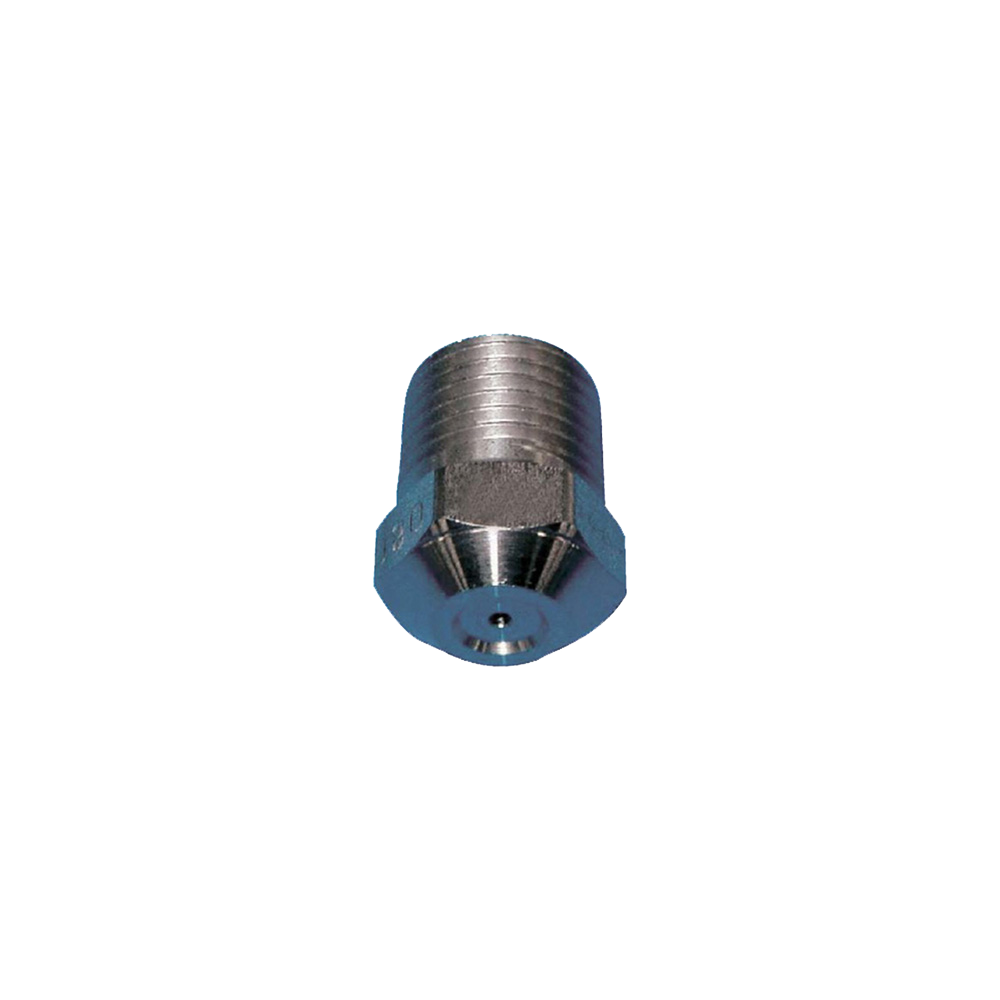

KKBP series

KKBP series


The KKBP series nozzles’ features:

  • Small capacity hollow cone spray nozzle.
  • Clog-resistant design due to large free passage diameter. Semi-fine atomization.
  • Compact, lightweight design with low number of components.
  • Maintenance is easy as whirler is detachable.
  Download CAD model   Contact us

Pipe conn. size

R 1/4", R 1/4"(G)

Spray angle

53 - 68°

Mean droplet diameter

160 - 360 μm


Included or available

Standard pressure

0.3 MPa (ca. 3 bar)

Spray capacity

0.50 - 2.00 L/min

Air consumption


Free passage diameter

1.0 - 1.8 mm


The KKBP series nozzles have multiple applications:

  • Humidifying: Air handling units
  • Cooling: Gas, metals
  • Spraying: Chemicals
  • Snow making (for snow machines)
