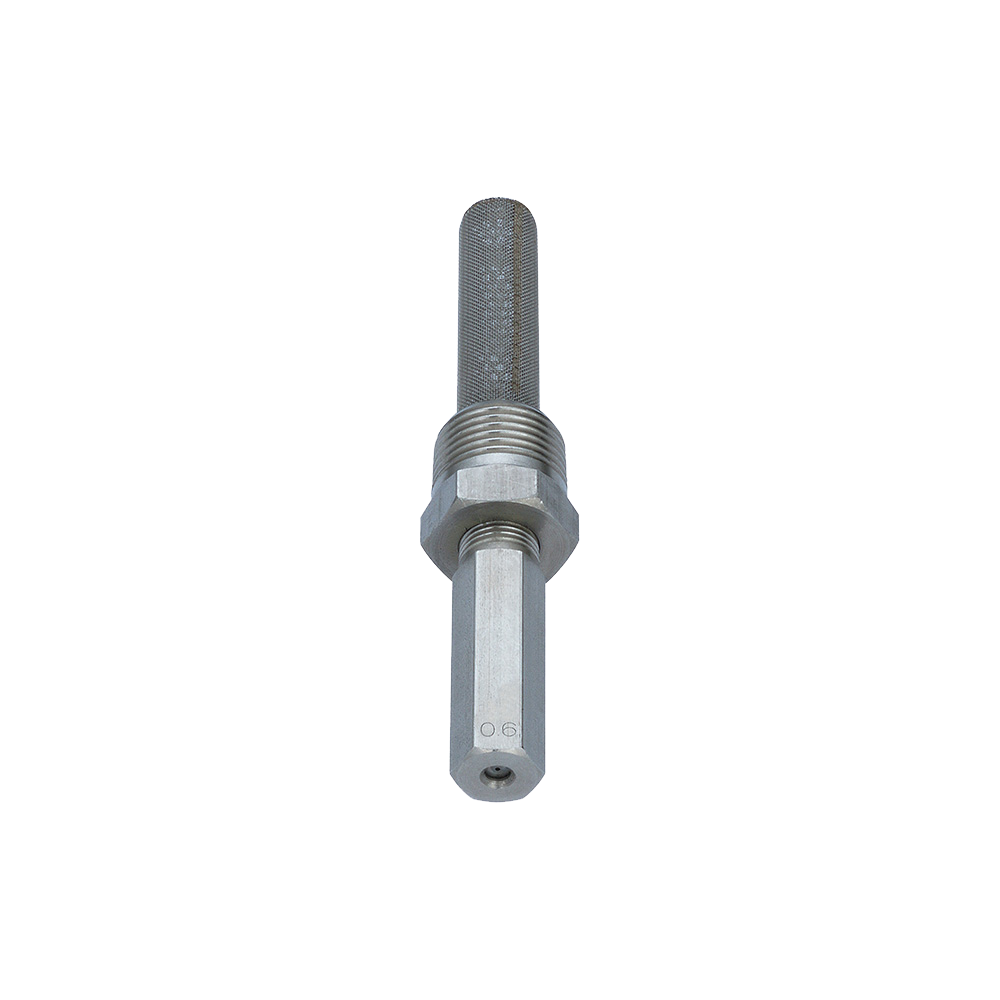

Nozzle with ceramic orifice inserted

CM series

CM series

Pipe conn. size

R 3/8"

Spray angle

-

Mean droplet diameter

-

Strainer

Included or available

Standard pressure

1 MPa (ca. 10 bar)

Spray capacity

0.016 - 3.03 L/min

Air consumption

-

Free passage diameter

0.1 - 1.5 mm

Features

The CM* series nozzles’ features:

  • Extra fine and clear non-turbulent solid stream nozzles with high impact cutting force.

*The CM models with the orifice diameter codes of Ø0.1, Ø0.15, Ø0.2 and Ø0.25 are made-to-order.

Applications

The CM series nozzles have multiple applications:

  • Trimming: Paper making
  • Cutting: Timber, food
  • Others: Cleaning of precision machine parts, injection of chemicals, deburring, foaming of beer (jet foamer)
