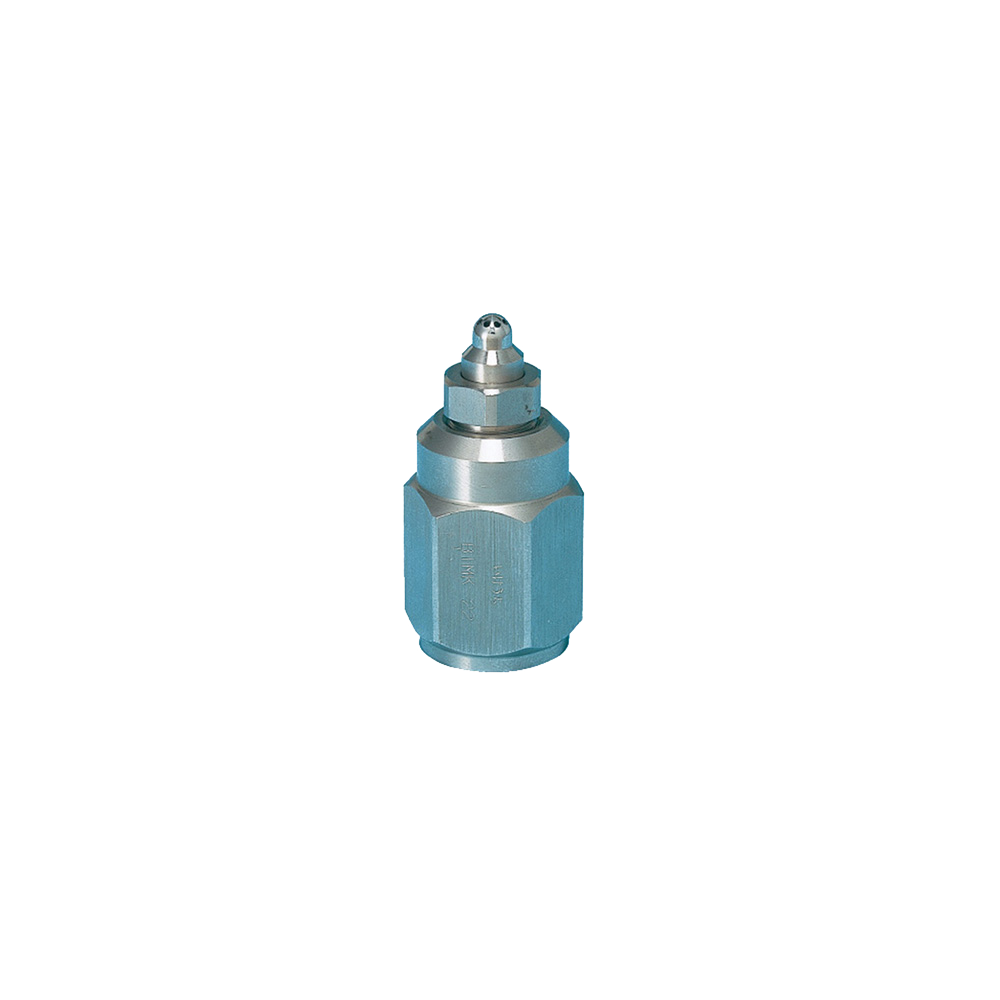

Fine fog hollow cone spray - Liquid siphon type

BIMK-S series

BIMK-S series

Features

The BIMK-S series nozzles’ features:

  • Hollow cone spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 30 μm or less (*3).
  • Liquid siphon feed type (liquid pressure device is not required).
  • Spray angle of 60°.


*1) Spray angle measured at compressed air pressure of 0.3 MPa (ca. 3 bar) and liquid siphon height of 100 mm.
*2) Free passage diameter of nozzle orifice.
*3) Measured by Laser Doppler Method.

  Download CAD model   Contact us

Thread standard

-

Pipe conn. size

-

Standard pressure

-

Spray angle

60° (*1)

Spray capacity

1.4 - 5.5 L/hr

Supply air type

Compressed air

Liquid feeding system

Liquid siphon

Mean droplet diameter

20 - 30 μm

Air consumption

27 - 92 L/min, Normal

Air pressure

0.2 - 0.4 MPa (ca. 2 bar - 4 bar)

Free passage diameter

0.6 - 0.8 mm (*2)

Applications

The BIMK-S series nozzles have multiple applications:

  • Spraying: Mold release agent, lubricant, deodorant (trash pit, refuse collector, inlet conduit), oil, surface treatment agent, rust preventive, insecticide, aqueous urea, etc.
  • Cooling: Dies, gas, glass, steel plates, steel pieces, moldings, automobile bodies, plastic products, etc.
  • Moisture control: Paper, gas, ceramics, concrete, etc.
