Compact design, full cone spray with Spray control

Spray control CBIMJ series

CBIMJ

Features

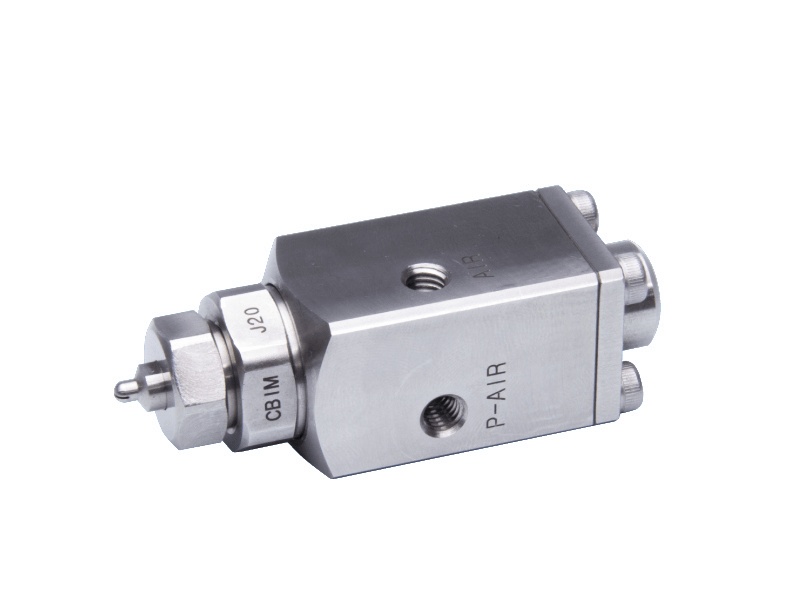

The Spray control CBIMJ series nozzles’ features:

  • New lineup of CBIM series compact nozzles with spray-control adaptor, which can regulate spray ON/OFF with a built-in piston.
  • Full cone spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 100 μm or less.**
  • Features large turn-down ratio under liquid pressures of 0.1 – 0.3 MPa (ca. 1 bar – 3 bar).


*Spray angle measured at compressed air pressure of 0.3 MPa (ca. 3 bar) and liquid pressure of 0.1 MPa (ca. 1 bar).
**Mean droplet diameter measured by laser Doppler method.

  Contact us

Thread standard

-

Pipe conn. size

M5 depth 4

Standard pressure

-

Spray angle

20°*

Spray capacity

0.25 - 14.3 L/hr

Supply air type

Compressed air

Liquid feeding system

Liquid pressure

Mean droplet diameter

20 - 100 μm**

Air consumption

2.6 - 25 L/min, Normal

Air pressure

0.2 - 0.4 MPa (ca. 2 bar - 4 bar)

Free passage diameter

0.7 - 1.1 mm (nozzle orifice)

Applications

The Spray control CBIMJ series nozzles have multiple applications:

  • Spraying: oil, surface treatment agent, rust preventive.
  • Moisture control: Paper, gas, ceramics, concrete, etc.
  • Cleaning: Printed circuit boards, glass tubes, etc.
