Compact design, flat spray - Liquid siphon

Spray control CBIMV-S series

Spray control CBIMV-S series

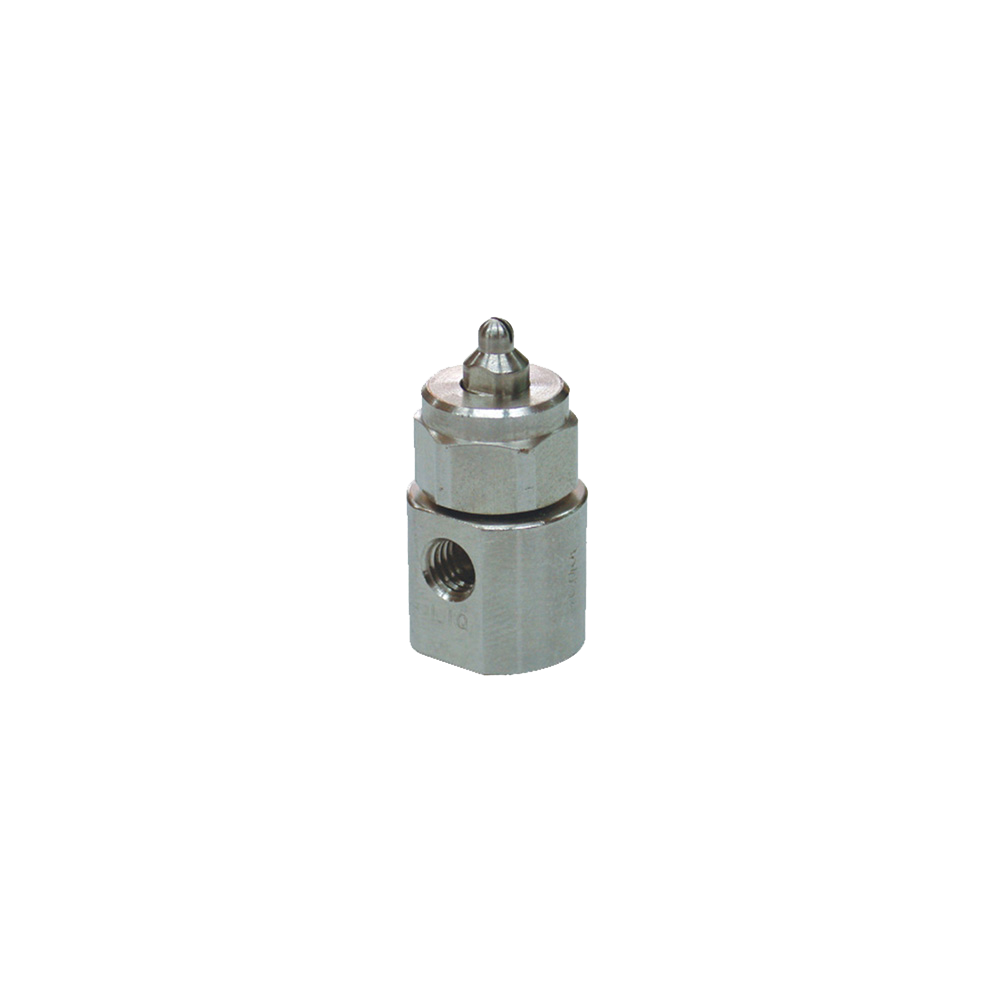

The Spray control CBIMV-S series nozzles’ features:

  • New lineup of CBIM series compact nozzles with spray-control adaptor, which can regulate spray ON/OFF with a built-in piston.
  • Capable of spraying smallest flow rate among all of our pneumatic spray nozzles.
  • Flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 30 μm or less.**
  • Even spray distribution across the entire spray area.

*Spray angle measured at compressed air pressure of 0.3 MPa (ca. 3 bar) and liquid siphon height of 100 mm.
**Mean droplet diameter measured by laser Doppler method.

  Contact us

Thread standard


Pipe conn. size

M5 depth 4

Standard pressure


Spray angle


Spray capacity

0.1 - 1.4 L/hr

Supply air type

Compressed air

Liquid feeding system

Liquid siphon

Mean droplet diameter

20 - 30 μm**

Air consumption

3.75 - 25 L/min, Normal

Air pressure

0.2 - 0.4 MPa (ca. 2 bar - 4 bar)

Free passage diameter

0.2 - 0.3 mm (nozzle orifice)


The Spray control CBIMV-S series nozzles have multiple applications:

  • Spraying: oil, surface treatment agent, rust preventive.
  • Moisture control: Paper, gas, ceramics, concrete, etc.
  • Cleaning: Printed circuit boards, glass tubes, etc.
