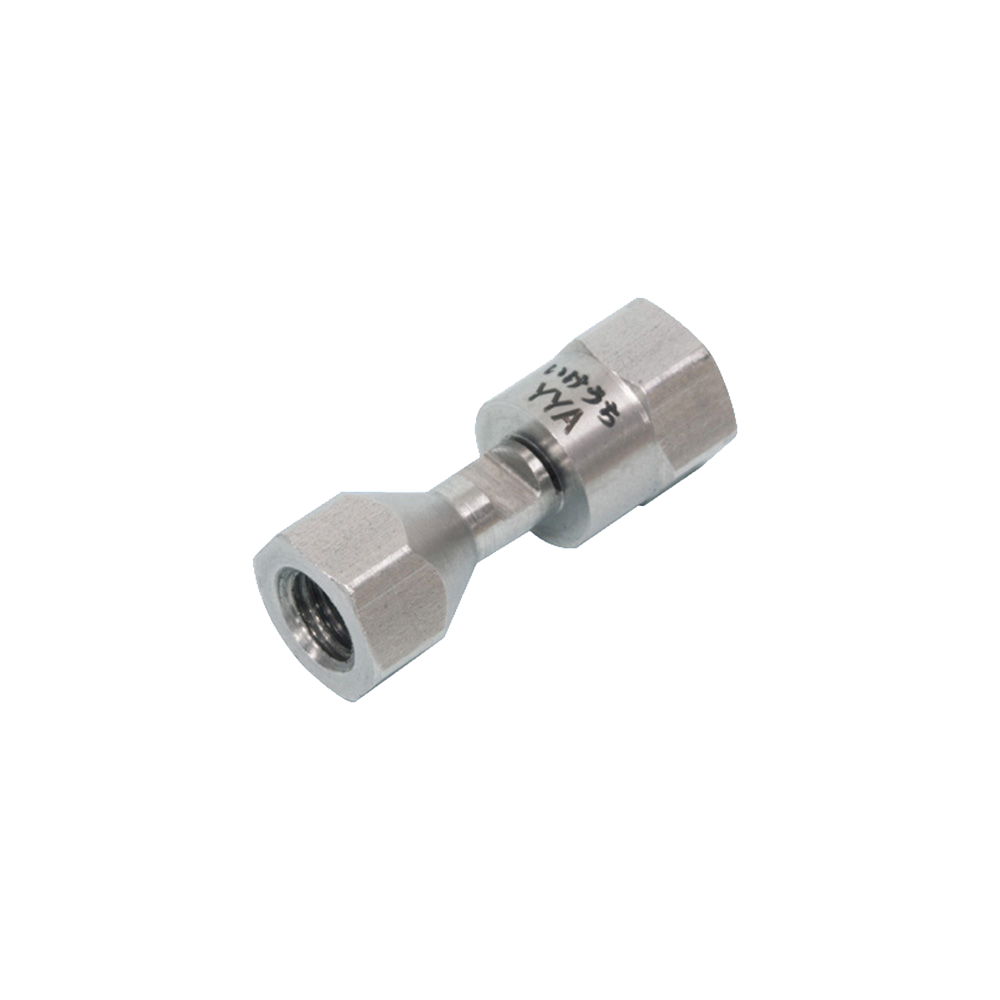

YYA series

Thread standard

-

Pipe conn. size

M5 depth 5

Standard pressure

-

Spray angle

80° (*1)

Spray capacity

2.2 - 10.0 L/hr

Supply air type

Compressed air

Liquid feeding system

Liquid pressure

Mean droplet diameter

15 - 30 μm (*2)

Air consumption

27 - 54 L/min, Normal

Air pressure

0.2 - 0.5 MPa (ca. 2 - 5 bar)

Free passage diameter

Liquid inlet: 0.4 mm, Air inlet: 0.2 mm

Features

The YYA series nozzles’ features:

  • Wide-angle flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 15 – 30 μm (*2).
  • Combines “clog-resistant” and “wide spray angle” features.
  • Compact, 22 mm-long design.
  • Capable of spraying viscous liquid up to approx. 300 cP. (*3)

*1) Measured at compressed air pressure of 0.3 MPa (ca. 3 bar) and liquid pressure of 0.05 MPa (ca. 0.5 bar).
*2) Measured by Laser Doppler Method.
*3) Spray capacity and spray angle are reduced when viscous liquid is sprayed.
Raising the liquid pressure to 0.2–0.3 MPa (ca. 2 bar – 3 bar) is recommended when spray capacity is small, otherwise the spray pattern becomes irregular.

Applications

The YYA series nozzles have multiple applications:

  • Spraying viscous liquid such as oil and honey
