Coin-shaped flat spray for narrow spaces

CVVP series (Made-to-order)

Features

The CVVP series nozzles’ features:

  • Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.

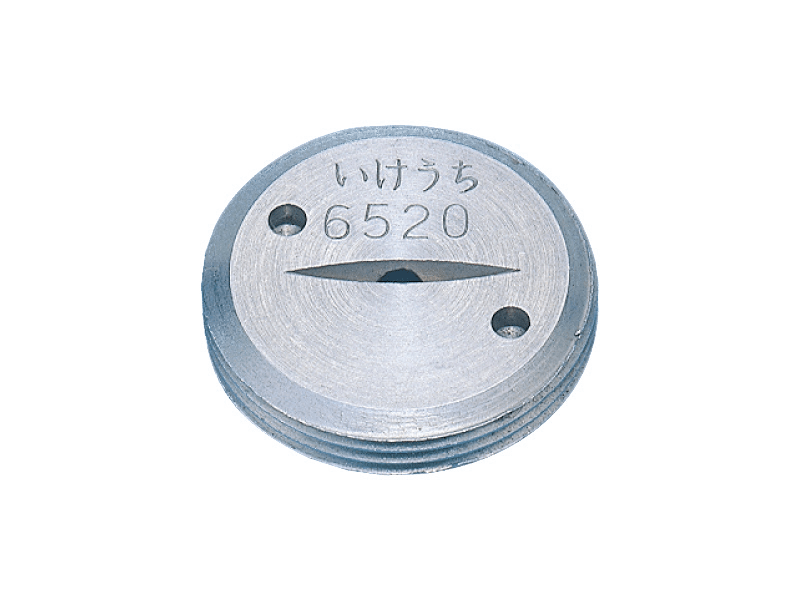

  • In the shape of a thin coin, this nozzle does not protrude out of a pipe-surface, which makes it easy to accommodate nozzle headers in narrow spaces.
  Download CAD model   Contact us

Pipe conn. size

M20×1

Spray angle

65 - 90°

Mean droplet diameter

210 - 450 μm

Strainer

Not included

Standard pressure

0.3 MPa (ca. 3 bar)

Spray capacity

1.00 - 8.00 L/min

Air consumption

-

Free passage diameter

0.5 - 1.9 mm

Applications

The CVVP series nozzles have multiple applications:

  • Cleaning: Felts, rolls, screens, filters, wires
  • Spraying: Lubricants, chemicals
  • Cooling: Steel plates and coils
