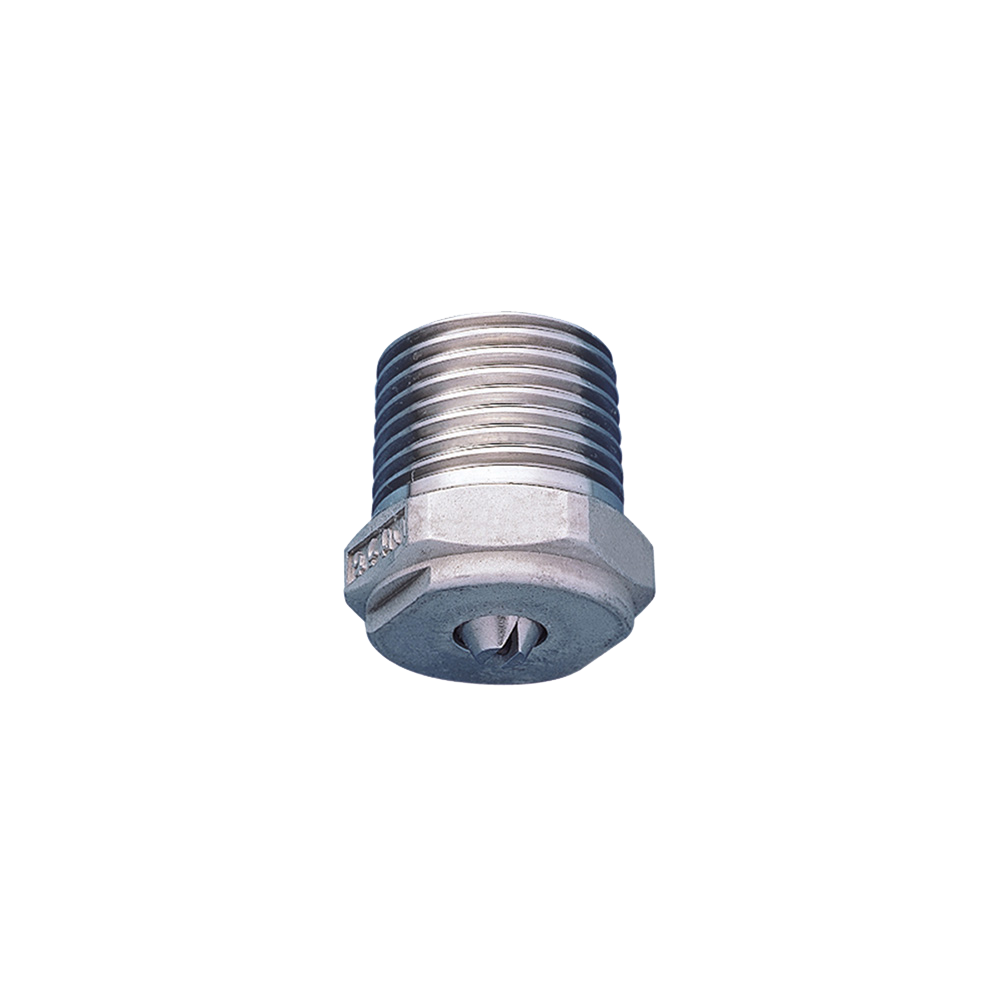

Self-cleaning flat spray nozzle

MOMOJet® series

MOMOJet® series

Pipe conn. size

R 1/2"

Spray angle

80°

Mean droplet diameter

300 - 490 μm

Strainer

Not included

Standard pressure

0.3 MPa (ca. 3 bar)

Spray capacity

2.00 - 6.00 ℓ/min

Air consumption

-

Free passage diameter

0.8 - 1.5 mm

Features

The MOMOJet® series nozzles’ features:

  • Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.
  • If clogged, by reducing the pressure to 0.03 MPa, the nozzle tip is retracted and purges foreign particles. By increasing the pressure to 0.2 MPa and greater, normal spraying is restored.
  • Straight-through orifice is suitable for multiple nozzle arrangement.

Applications

The MOMOJet® series nozzles have multiple applications:

  • Cleaning: Wire, felt parts and rollers of paper making machines, steel plates, PCB
  • Cooling: Steel plates
  • Foam breaking: Waste water treatment
  • Others: Applications where recirculated water is being used
