Special Angle (Narrow, wide and square angle)

Narrow, wide, and square angle full cone nozzles are special angle hydraulic nozzles. With a full cone spray pattern, the droplets are sprayed in a cone-shaped manner, having its origin point at the nozzle orifice. This spray pattern is often advised in multiple industrial applications because it allows an even distribution of a liquid onto a surface. For example, this spray pattern is useful when it comes to spraying a cooling liquid on a still surface. Since full cone nozzles are very useful, a wide range of specific nozzles for various applications have been designed. Some of the full cone nozzles are designed to be clog-resistant.

The narrow, wide and square angle nozzles are variations of the standard angle nozzles, but they concern more specific applications. The vast range of different angles available to IKEUCHI nozzles allows us to be sure to find the perfect nozzle and the ideal range for your industry, with spray capacity from small to medium and applications such as :

  • cleaning gas, machinery, screens, tanks, etc.;
  • cooling steel machinery, gas or tanks;
  • spraying water treatment;
  • fire extinguishing;
  • dust suppression.



At IKEUCHI, we have determined the fundamentals to select the right nozzle for your application based on their characteristics. When selecting the nozzle, we advise you based on your required spray angle, spray capacity, optimum spray pattern, and spray distribution.

If you have technical question about nozzles, need advice to choose, or request a quote,

Contact us

Narrow-angle with an uniform distribution

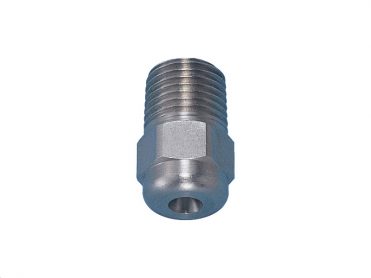

NJJP series

NJJP series

NJJP series

Square spray with uniform distribution

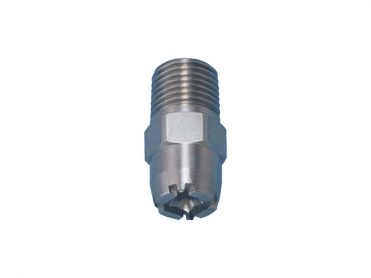

SSXP series

SSXP series

SSXP series

Wide-angle with uniform distribution

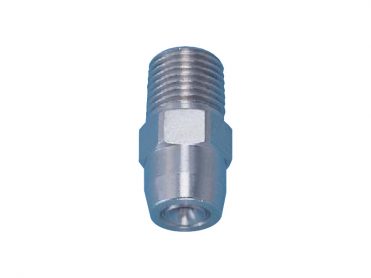

BBXP series

BBXP series

BBXP series

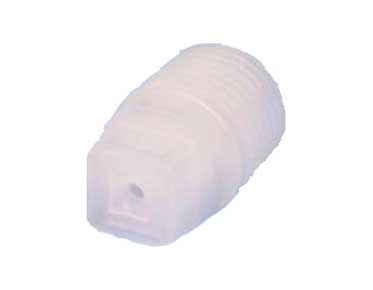

Square full cone spray nozzle in PVDF

SSRP-HV-series

SSRP-HV series

SSRP-HV series
