Square spray with uniform distribution

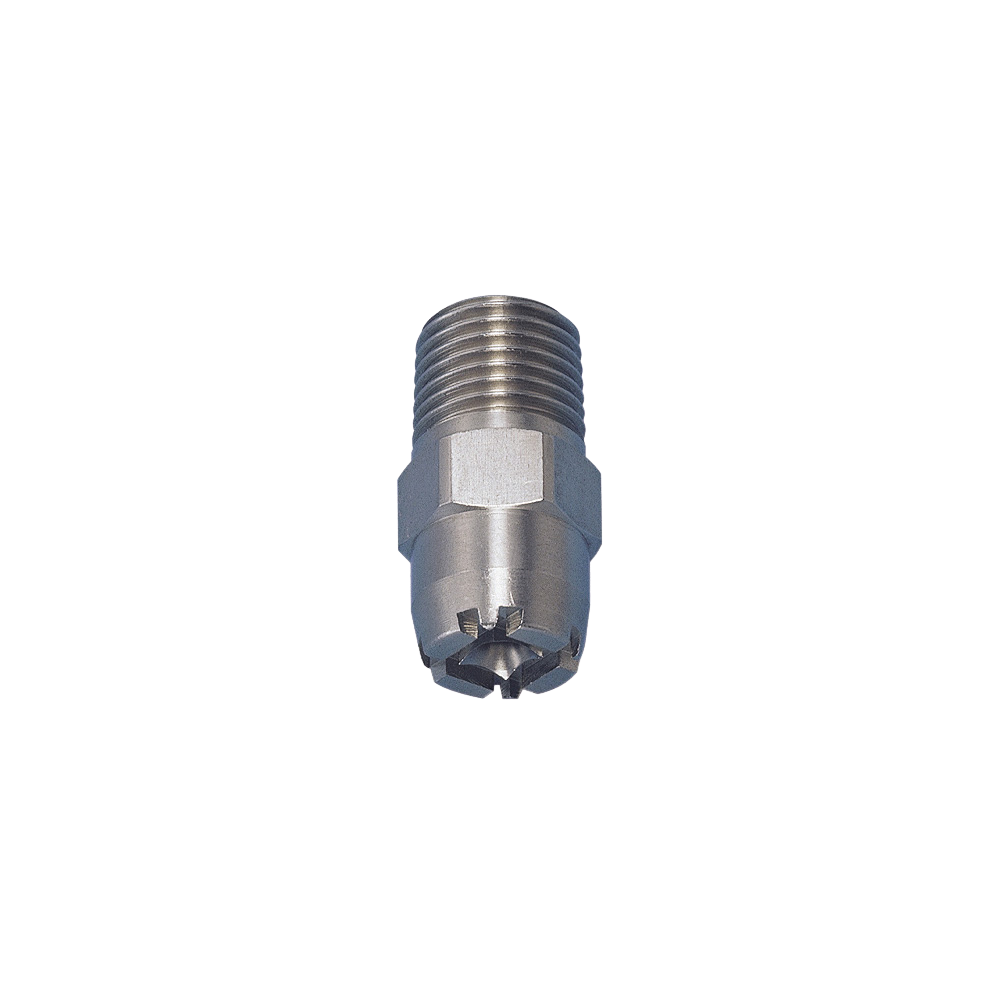

SSXP series

SSXP series

Pipe conn. size

R 1/8" - R 1/4", Rc 1/8"- Rc 3"

Spray angle

65 - 100°

Mean droplet diameter

330 - 1,700 μm

Strainer

Not included

Standard pressure

0.2 MPa (ca. 2 bar)

Spray capacity

2.00 - 700 L/min

Air consumption

-

Free passage diameter

0.9 - 17.1 mm

Features

The SSXP series nozzles’ features:

  • Square full cone spray pattern with uniform distribution.
  • Wide spray angle of 90–100゚ provides large spray coverage.
  • Square full cone spray pattern leaves no gaps in multiple-nozzle arrangements.
  • X-shaped whirler provides large free passage diameter for minimal clogging.

a

Applications

The SSXP series nozzles have multiple applications:

  • Cleaning: Gas, incinerator fumes, machinery, eliminators, screen, tanks, parts, crushed stones, earth and sand
  • Cooling: Gas, machinery, tanks, steels
  • Spraying: Waste water treatment, foam breaking, fire extinguishing, dust suppression
