Wide-angle with uniform distribution

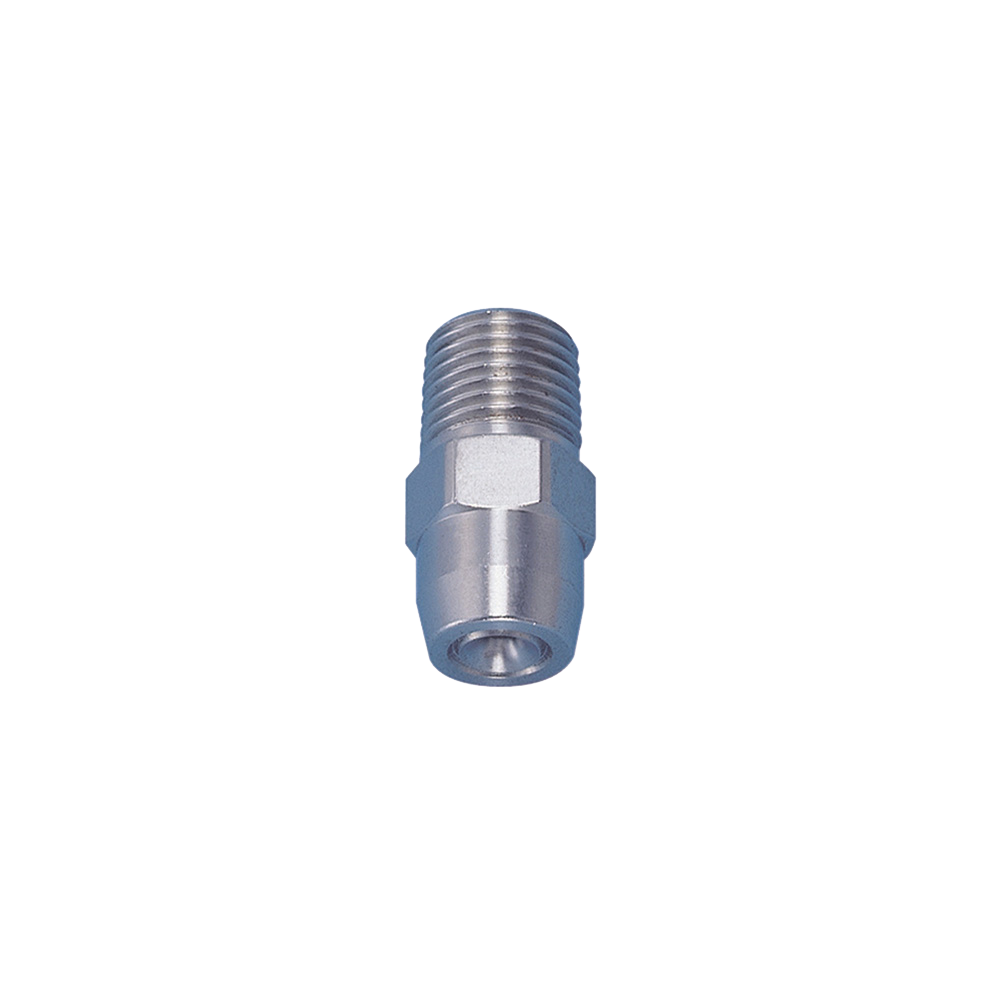

BBXP series

BBXP series

Pipe conn. size

R 1/8" -R 3/8", Rc 3/8" - Rc 4"

Spray angle

120°

Mean droplet diameter

280 - 1,200 μm

Strainer

Not included

Standard pressure

0.2 MPa (ca. 2 bar), 0.35 MPa (ca. 3.5 bar)

Spray capacity

0.80 - 1,200 ℓ/min

Air consumption

-

Free passage diameter

0.5 - 21.7 mm

Features

The BBXP series nozzles’ features:

  • Full cone spray pattern with a round impact area and uniform distribution.
  • Spray angle of 120° provides larger spray coverage than other nozzles.
  • Spray capacity ranges from small to medium.
  • X-shaped whirler provides large free passage diameter for minimal clogging.

Applications

The BBXP series nozzles have multiple applications:

  • Cleaning: Gas, incinerator fumes, machinery, eliminators, screen, tanks, parts, crushed stones, earth and sand
  • Cooling: Gas, machineries, tanks, steel plates
  • Spraying: Water treatment, aeration, foam breaking, fire extinguishing, dust suppression, sea water desalination

Industries and Applications in which this nozzle is used
