Small capacity fine fog nozzle in polypropylene

BIM-PP series

BIM-PP-series

Thread standard

-

Pipe conn. size

Rc 1/8"

Standard pressure

-

Spray angle*

80°**, 20°***

Spray capacity

4.0 - 38.5 L/hr**, 2.0 - 19.6 L/hr***

Supply air type

Compressed air

Liquid feeding system

Liquid pressure

Mean droplet diameter****

20 - 100 μm

Air consumption

29 - 91 K/min, Normal**, 13 - 45 L/min, Normal***

Air pressure

0.2 - 0.4 MPa (ca. 2 bar - 4 bar)

Free passage diameter

0.6mm**, 1.6mm*** (nozzle orifice)

Download CAD model

Features

The BIM-PP series nozzles’ features:

  • Excellent chemical resistance with polypropylene construction.
  • Two types, BIMV (flat spray pattern) and BIMJ (full cone spray pattern), are available.
  • Liquid pressure type with approx. 0.1 to 0.3 MPa (ca. 1 – 3 bar).


*Spray angle measured at compressed air pressure of 0.3 MPa (ca. 3 bar) and liquid pressure of 0.1 MPa (ca. 1 bar).

**Flat spray: model BIMV80075, see the product catalog of BIMV series for spray performance details. Product code: BIMV 80075 PP + TPP-IN

**Full cone spray: model BIMJ2004, see the product catalog of BIMJ series for spray performance details. Product code: BIMJ 2004 PP + TPP-IN

****Mean droplet diameter measured by laser Doppler method.

Applications

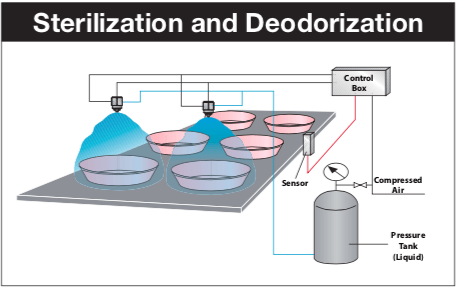

The BIM-PP series nozzles have multiple applications:
