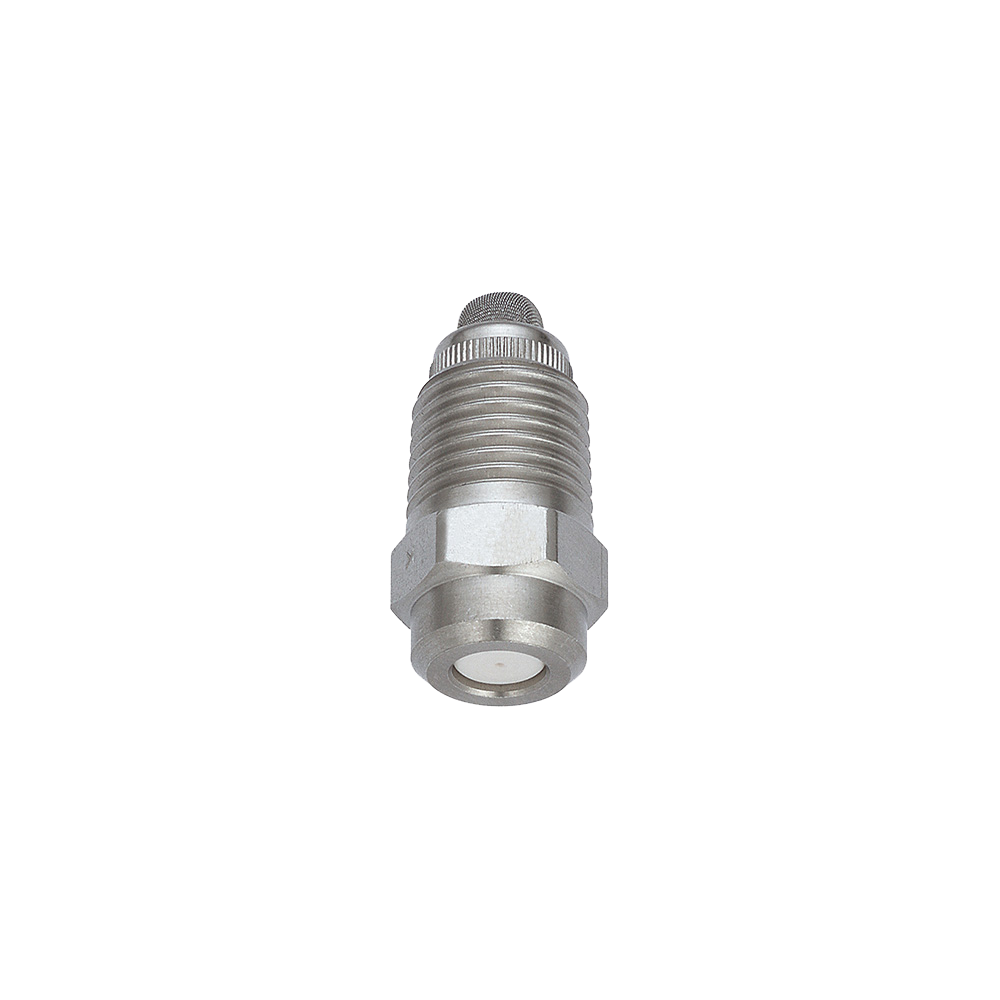

Small capacity full cone spray w/ ceramic orifice

J series

J series

Features

The J series nozzles’ features:

  • Full cone spray pattern with a round impact area and uniform distribution.
  • Features smallest spray capacity among full cone spray nozzles.
  • Unique design developed from new engineering concept to produce fine atomization by impinging two inflows inside vortex chamber.
  • Ceramic orifice and closer provide excellent wear-resistance.

  Contact us

Pipe conn. size

R 1/4"

Spray angle

70°

Mean droplet diameter

130 - 440 μm

Strainer

Included or available

Standard pressure

0.2MPa (ca. 2 bar), 0.5 MPa (ca. 5 bar)

Spray capacity

0.09 - 1.40 L/min

Air consumption

-

Free passage diameter

0.2 - 0.9 mm

Applications

The J series nozzles have multiple applications:

  • Spraying: Oils, lubricants, glues, etchants
  • Cleaning: Galvanizing, gas
  • Cooling: Machinery, gas
