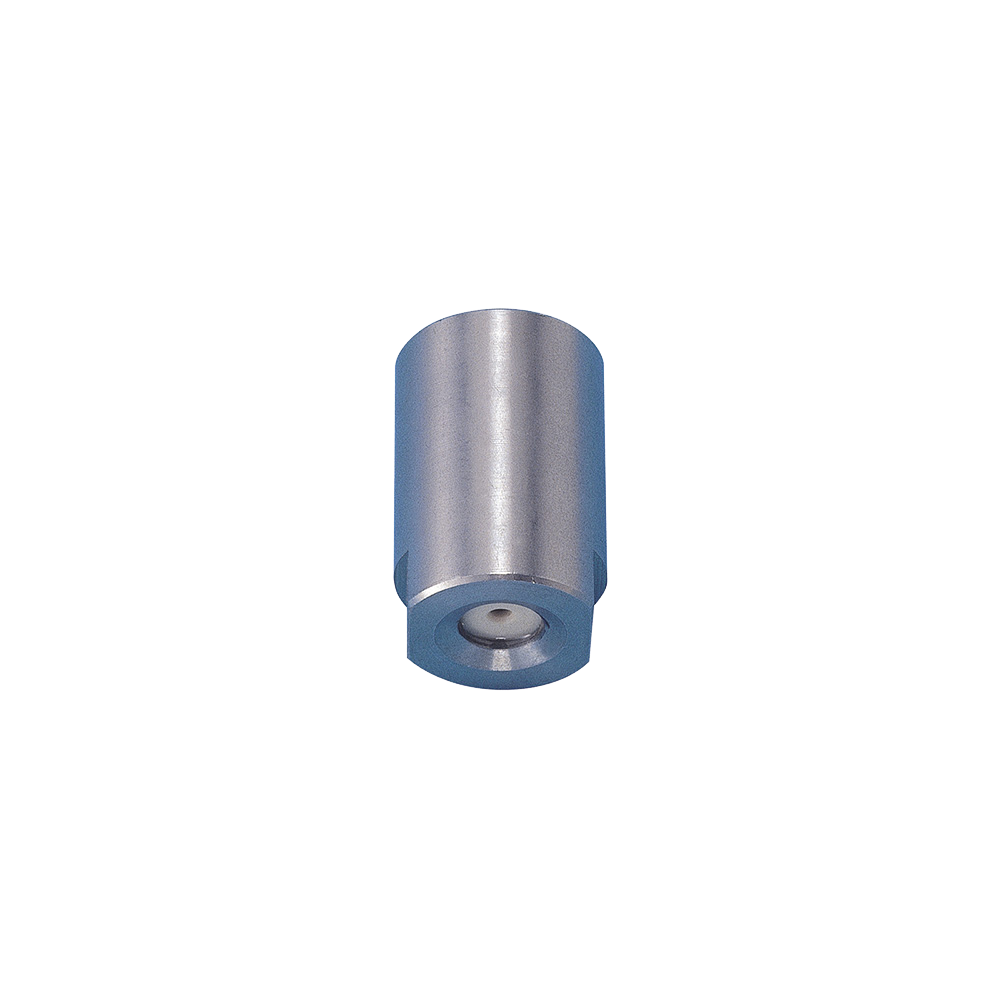

Ceramic orifice & whirler inserted full cone spray

JUP series (Made-to-order)

JUP series

Features

The JUP series nozzles’ features:

  • Full cone spray pattern with a round impact area and uniform distribution.
  • Ceramic disc whirler and ceramic orifice forming vortex chamber provide excellent wear resistance.
  • Medium spray capacity is available.
  Contact us

Pipe conn. size

Rc 3/8" - Rc 1*1/2"

Spray angle

60 - 85°

Mean droplet diameter

380 - 1,000 μm

Strainer

Not included

Standard pressure

0.2 MPa (ca. 2 bar)

Spray capacity

3.00 - 90.0 L/min

Air consumption

-

Free passage diameter

1.2 - 5.0 mm

Applications

The JUP series nozzles have multiple applications:

  • Cleaning: Gas, incinerator fumes, machinery, eliminators, screen, tanks, parts, crushed stones, earth and sand
  • Cooling: Gas, machinery, tanks, steels
  • Spraying: Waste water treatment, aeration, foam breaking, dust suppression
