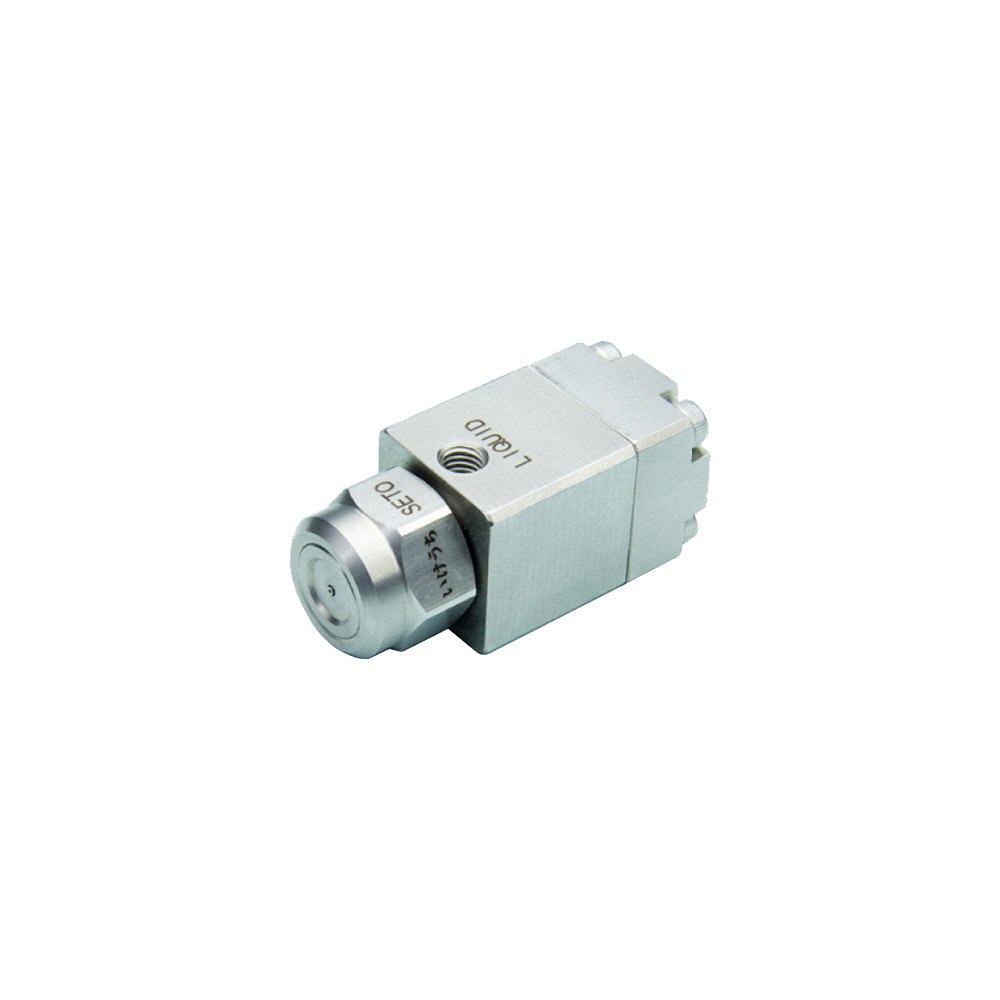

External mixing type with piston

SETO-SP series

SETOJet-SP series

Features

The SETO-SP series nozzles’ features:

  • Full cone spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 60 μm or less (*1).
  • Clog-resistant design. Optimal for spraying viscous liquids.
  • No dripping from the nozzles when spray shut off.
  • Compact, 46 mm-long design.
  • By stopping the compressed air supply, controlled intermittent liquid dripping (pulse spray) is possible.
  • Liquid siphon feed type (liquid pressure device is not required). Use with the liquid pressure device is also possible.

*1) Measured by Laser Doppler Method.

  Contact us

Thread standard

-

Pipe conn. size

M6 depth 5

Standard pressure

-

Spray angle

-

Spray capacity

1.5 - 5.1 L/hr(*1)

Supply air type

Compressed air

Liquid feeding system

Liquid pressure, Liquid siphon

Mean droplet diameter

10 - 50 μm

Air consumption

18 - 30 L/min, Normal(*1)

Air pressure

0.2 - 0.4 MPa (ca. 2 - 4 bar)

Free passage diameter

Liquid: 0.4 mm Air: 0.1 mm

Applications

The SETO-SP series nozzles have multiple applications:

  • Spraying: Mold release agent, deodorant, oil, surface treatment agent, rust preventive, lubricant, glaze, insecticide, aqueous urea, slurry
