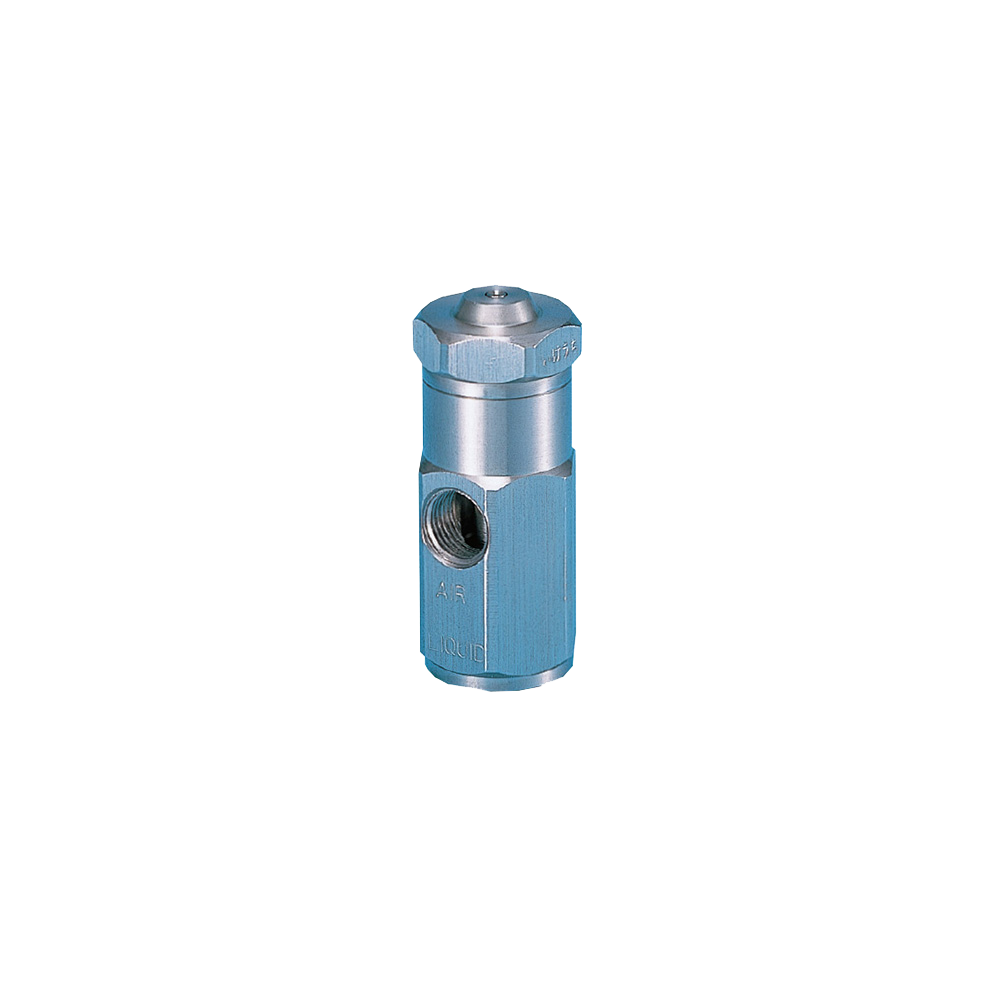

External mixing type to spray viscous liquids

SETOJet series

SETOJet series

Thread standard

-

Pipe conn. size

Rc 1/8"

Standard pressure

-

Spray angle

-

Spray capacity

2.0 - 111 L/hr

Supply air type

Compressed air

Liquid feeding system

Liquid pressure, Liquid siphon

Mean droplet diameter

20 - 60 μm (*1,*3)

Air consumption

38 - 290 L/min, Normal

Air pressure

0.3 MPa (ca. 3 bar)

Free passage diameter

0.5 - 2.0 mm (*2)

Features

The SETOJet series nozzles’ features:

  • Full cone spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 60 μm or less (*3).
  • Clog-resistant design. Optimal for spraying viscous liquids.
  • Liquid siphon feed type (liquid pressure device is not required). Use with the liquid pressure device is also possible.

*1) Measured at compressed air pressure of 0.3 MPa (ca. 3 bar), liquid pressure of 0 MPa (liquid siphon feed), and siphon height 100 mm.
*2) Free passage diameter of liquid inlet.
*3) Measured by Laser Doppler Method.

Applications

The SETOJet series nozzles have multiple applications:

  • Spraying: Mold release agent, deodorant, oil, surface treatment agent, rust preventive, lubricant, glaze, insecticide, aqueous urea, slurry, other viscous liquid
