Semi-fine fog / Light rain (-1,000 μm)

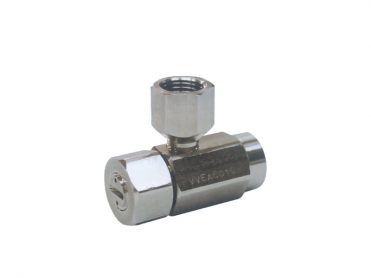

High impact flat spray semi fine fog

VVEA series

VVEA series

VVEA series

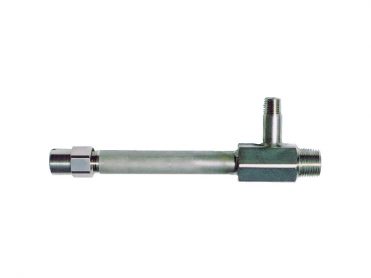

Flat spray semi-fine fog nozzle

DOVEA series

DOVEA series

DOVEA series

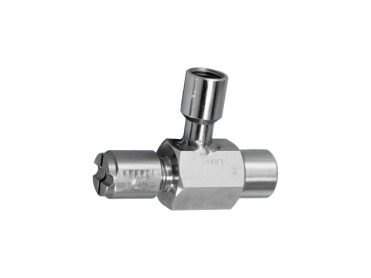

Ultra-thick flat spray semi-fine fog

DDA series

DDA series

DDA series

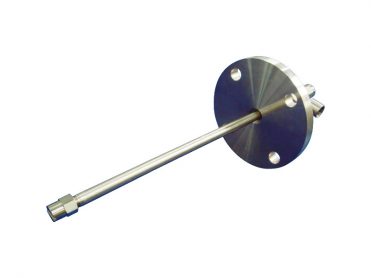

Clog-resistant flat spray semi-fine fog

DOVVA-G series

DOVVA-G series

DOVVA-G series

Uniform spray distribution, full cone semi-fine fog

JJA series

JJA series

JJA series

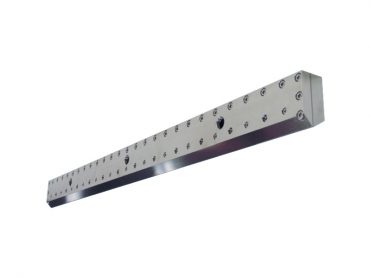

Pneumatic slit laminar spray nozzle

PSN series

PSN series

PSN series

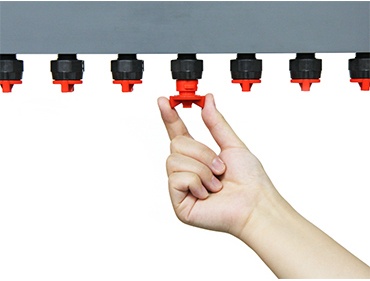

Integrated high impact spray head with quick detachable nozzles.

INVVEA series

INVVEA series

Our semi-fine fog nozzles are pneumatic nozzles. Our pneumatic nozzles are separated into three categories representing the way air is supplied to the nozzle before being mixed with a liquid: compressed air driven nozzles, air blower driven nozzles and special pneumatic nozzles (like steam driven).

Compressed air is a form of energy storage due to its ability to perform work when decompressed. The production of compressed air is carried out, for the most part, with electric power through a compressor.

Besides, another great advantage of the use of IKEUCHI’s nozzles is that they have a lower consumption of compressed air flow compared to free exhaust pipes, thus reducing the installation’s operating costs.

The semi-fine fog nozzles are able to spray droplets from 100 μm to 1000 μm. It is used in numerous applications requiring high-velocity and concentrated fine atomization, which can wash out fin dirt particles that conventional cleaning could not clean. Moreover, they are highly effective options for steel and gas cooling.



At IKEUCHI, we have determined the fundamentals to select the right nozzle for your application based on their characteristics. When selecting the nozzle, we advise you based on your required spray angle, spray capacity, optimum spray pattern, and spray distribution.
