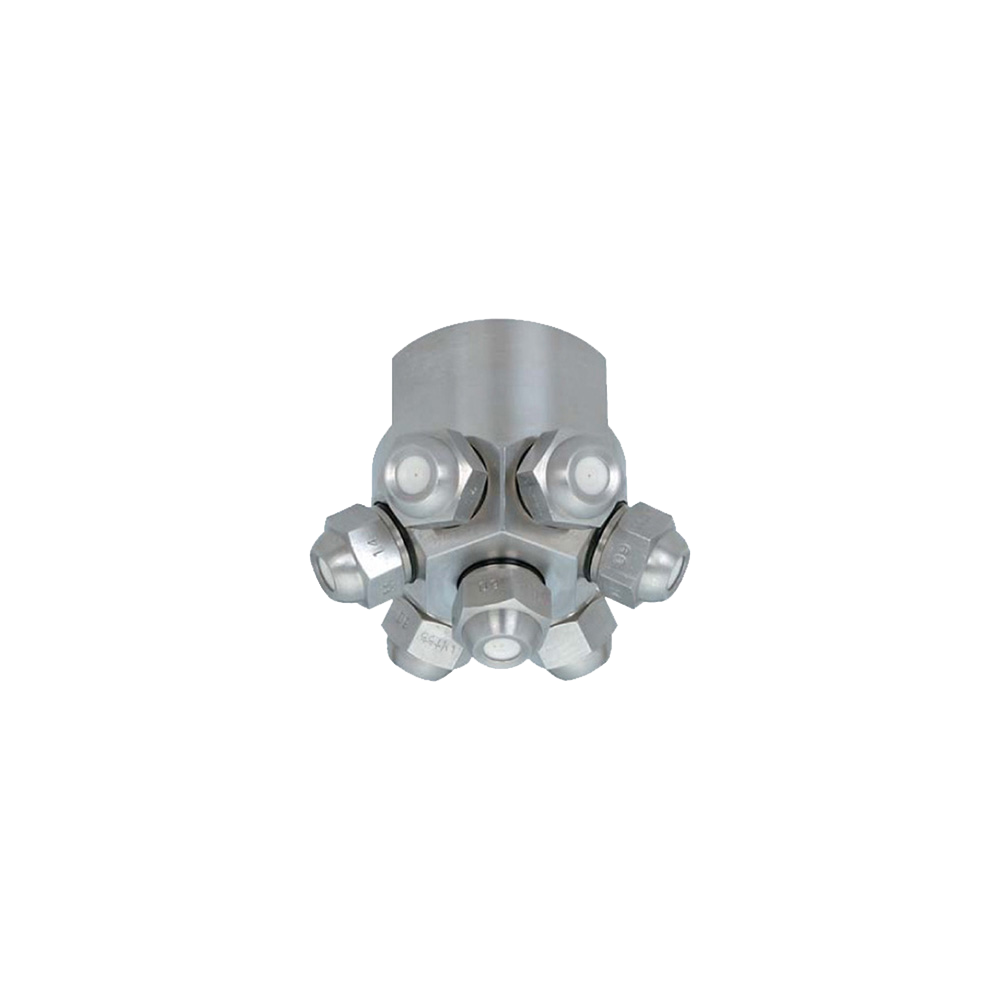

7-head full cone spray for an extremely fine atomization

7KB series

7KB series

Pipe conn. size

Rc 3/4"

Spray angle

180°

Mean droplet diameter

45 - 210 μm

Strainer

Not included

Standard pressure

0.7 MPa (ca. 7 bar)

Spray capacity

0.23 - 10.9 L/min

Air consumption

-

Free passage diameter

0.15 - 0.60 mm

Features

The 7KB series nozzles’ features:

  • Full cone spray pattern with a round superimposed impact area.
  • 7 pcs. of KB series hollow cone spray nozzles are screwed into a very compact header: 7KB series.
  • Capable of generating a large volume of fine atomization.
  • The whirl chamber is formed by a ceramic orifice and closer, which provides excellent wear resistance.

Applications

The 7KB series nozzles have multiple applications:
